Designed for simplicity, TANGO II empowers every user to perform measurements with confidence. Its intuitive interface, available on the optional high-performance Touch Panel PC or any standard computer, supports 17 languages and enables users of all skill levels to perform measurements with ease.
Bruker’s MPA III Dairy Analyzer sets a new standard for quality control and analysis of liquid and solid samples in the dairy industry with the software-controlled Liquid Sampling Module. With homogenizer and peristaltic pump, the it has two options for sample delivery including automated cleaning cycles and visible tubing for easy inspection. The modular concept is based on Bruker’s MPA III FT-NIR instrument.
Transmission measurement through a thermostatted quartz flow cell with 1mm (1,000μm) path length for all liquids. The maintenance free design shows no cuvette wear over time. Viscous samples like concentrates can be pumped through easily, even if they contain small particles or sugar crystals.

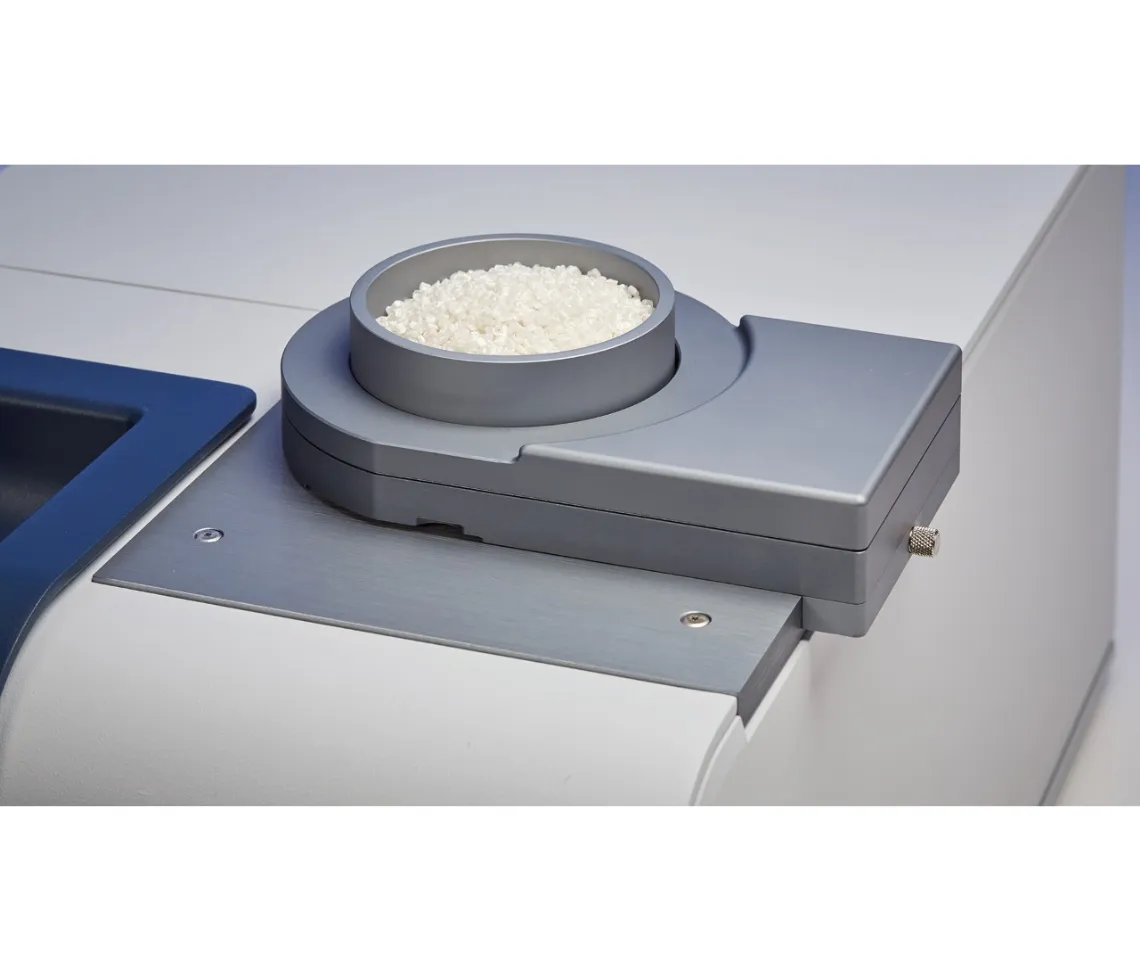

Reflection analysis for all solid and semi-solid sample forms with the integrating sphere in sample cups for powder samples and for semi-solids in disposable polystyrene or alternatively glass or quartz Petri dishes. The sample is rotated during analysis to obtain the average result from a larger sample volume.
The LUMOS II is a stand-alone FT-IR microscope and IR laser imaging microscope. It excels in any IR application from failure analysis to material research to life science. It is compact, precise and features ultrafast chemical imaging.
More space for sample preparation. More speed for chemical imaging. More perfomance in ATR, transmission and reflection microscopy. This is what we call a true game changer – no discussion.
The CONFOCHECK is a dedicated FT-IR system for the investigation of proteins in water. Its specific configuration facilitates a fast data acquisition (ca. 30 sec. per sample) with a high sample throughput controlled by an extremely user-friendly software interface.
Main applications for the CONFOCHECK are the detection and quantification of conformational changes in proteins and the protein concentration determination. Quantitative determination of the protein concentration and the secondary structure elements (alpha-helix, beta-sheet) from the analyzed protein samples is accomplished within seconds via internal calibrations.
The BEAM is the first dedicated single-point NIR spectrometer unleashing the full power of FT-NIR spectroscopy, taking in-process control to the next level. It helps you to get the most out of your production by directly monitoring on the scene in real-time, improving your process variability. Optimized for solid and semi-solid material, it can be easily installed on pipelines, hoppers or over conveyor belts.
From inspecting incoming goods to process control and final product inspection, the BEAM can be applied at any level of the production chain across many industries. While improving control over the manufacturing process, process fluctuations can be reduced, and specifications more precisely met. This ultimately leads to cost savings by reducing waste and re-work and ultimately a fast ROI of the BEAM.
The extension of the mid IR towards the far IR spectral range below 400 cm-1 is of general interest for molecular vibrational analysis for various application fields and industry branches. Till now, to extend the spectral range, one or more additional far IR beamsplitters and detectors are required and the user has to manually open the spectrometer optics bench.

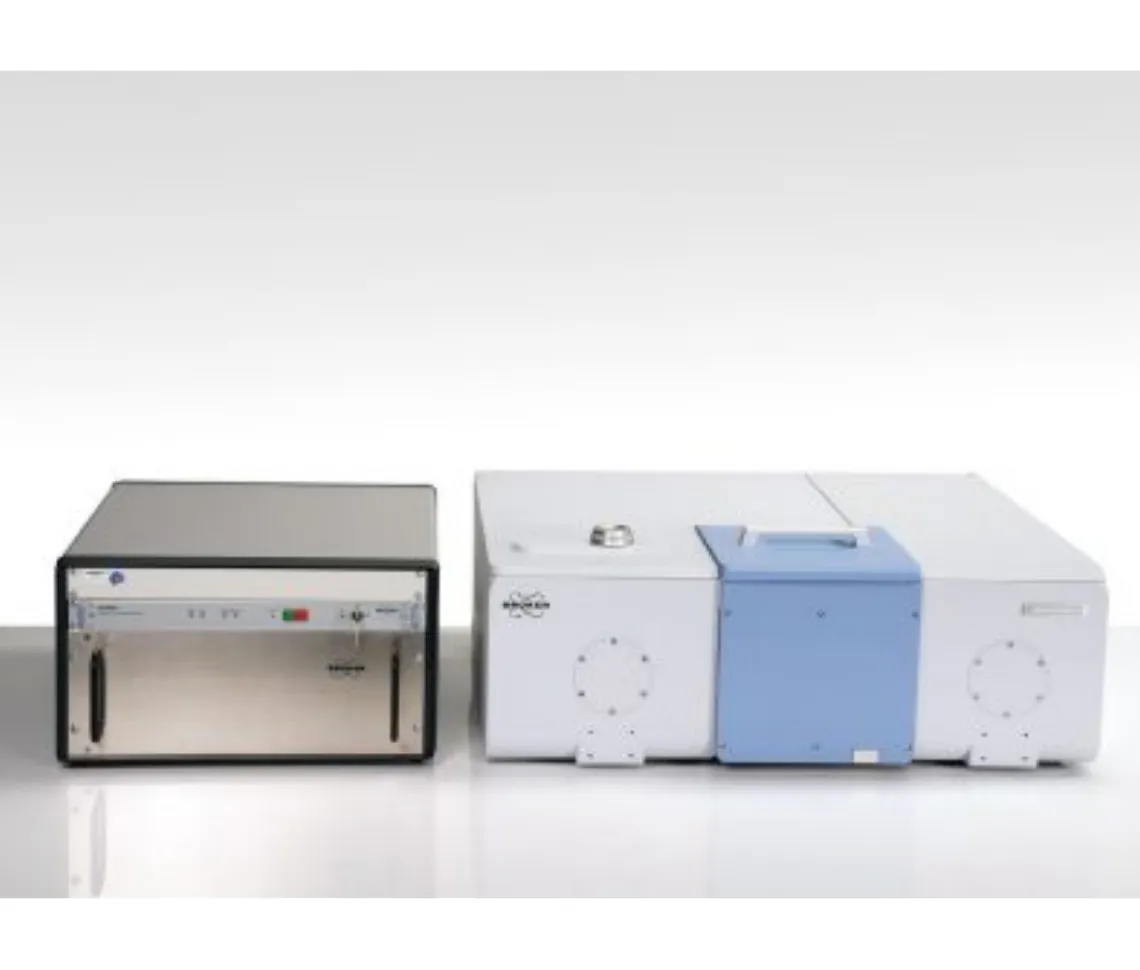

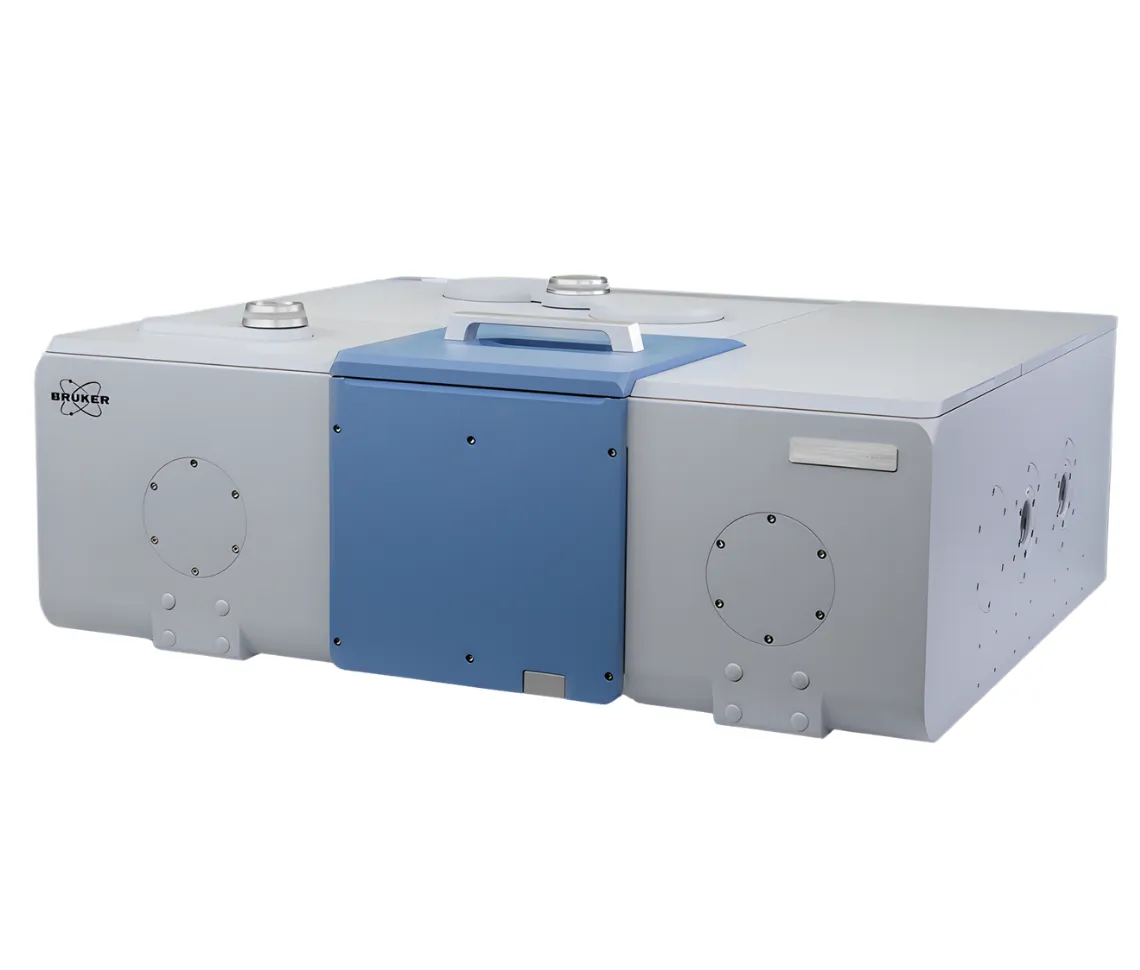

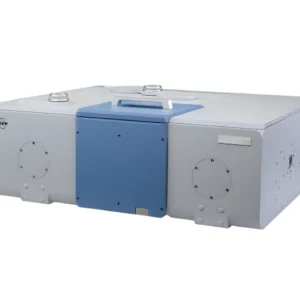

The unique Bruker FM technology for VERTEX 70v and INVENIO FT-IR research spectrometers which combines the wide spectral range beamsplitter, the wide range DTGS detector and the standard IR source to cover the spectral range from 6000 cm-1 down to 50 cm-1 (for INVENIO from 6000 cm-1 down to 80 cm-1) in one single scan for all types of transmittance, reflectance and ATR measurements.
Additional Values of Bruker FM
Full mid and far IR spectrum in one go
Enormous time saving due to just one single measurement
Acquisition of the complete molecular vibrational spectral information
No break of purge or vacuum conditions for optical component exchange
No danger of touching or damaging expensive and sensitive optical components
No need for complex and demanding exchange devices
All optical components are insensitive to humidity
CryoSAS combines Bruker’s high performance FT-IR spectrometers with built-in, closed-cycle cryo-cooling technique that does not require any liquid Helium. All CryoSAS components are state-of-the-art, yet utilize proven technologies to accomplish a difficult analysis in the demanding silicon production environment. CryoSAS can be operated at a high level of automation including accurate reporting of the analysis results.
Drug checking, or harm prevention , uses Fourier-Transform Infrared (FT-IR) Spectroscopy to analyze recreational drugs. This helps drug users identify harmful additives and impurities, ultimately promoting safer drug consumption by providing critical composition information. Overall, FT-IR enables rapid and accurate substance analysis for harm reduction.
The HYPERION II is an innovation force in infrared microscopy. It provides IR imaging down to the diffraction limit and sets the benchmark in ATR microscopy. It combines FT-IR and Infrared Laser Imaging (ILIM) microscopy for the first time ever in a single device, offering all three measurement modes: transmission, reflection, and ATR.
Hardly any of our IR microscopes embody our users like the HYPERION II:
Flexible, precise, configurable, adaptable, and always at the limit of what is possible.
Take Full Control
Above all, it is about having complete access to an instrument. Access to the experiment, the samples, and the parameters. This is the foundation of the HYPERION II and its most valuable asset: providing full control.
The IFS 125HR is the ultimate instrument for the high resolution IR spectroscopy
In absorption or emission mode, the IFS 125HR can resolve highly complex spectra into discrete lines for recognition and spectral assignment.
The IFS 125HR electronics provides Ethernet connectivity and data acquisition based on the DigitectTM system using 24-bit ADC’s integrated with the detector. The standard MIR spectral range can be easily extended to the NIR, visible, or even UV.
The MATRIX II-MG Series comprises four high-performance FT-IR gas analyzers in a compact and rugged housing. They are designed for the automated, high precision and real-time monitoring of gas concentrations in many different applications. Whatever application you have in mind, you can configure the system to your needs:
A variety of different detector types are available for your needs: detectors with exceptional sensitivity (liquid-nitrogen- or Stirling-cooled MCT), detectors with extended spectral range (DLaTGS) or detectors when liquid nitrogen is unavailable but low detection limits are yet required (TE-MCT).
Optical spectroscopy is today a highly important technology for online process monitoring and optimization. Fiber-coupled probes allow a direct look into the process without time delay.

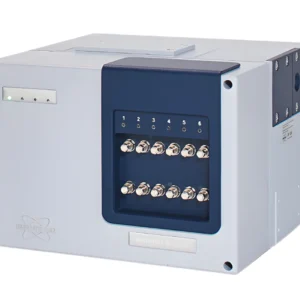

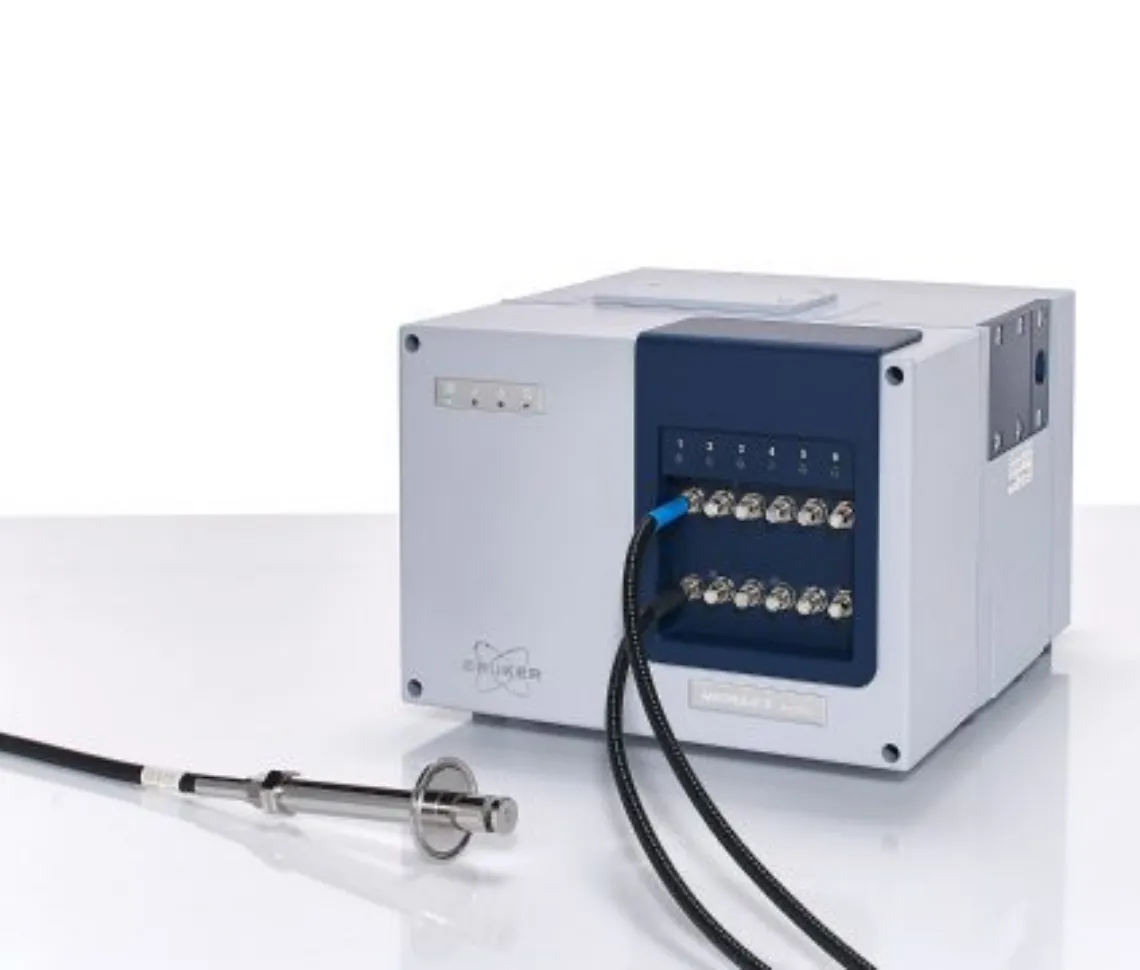

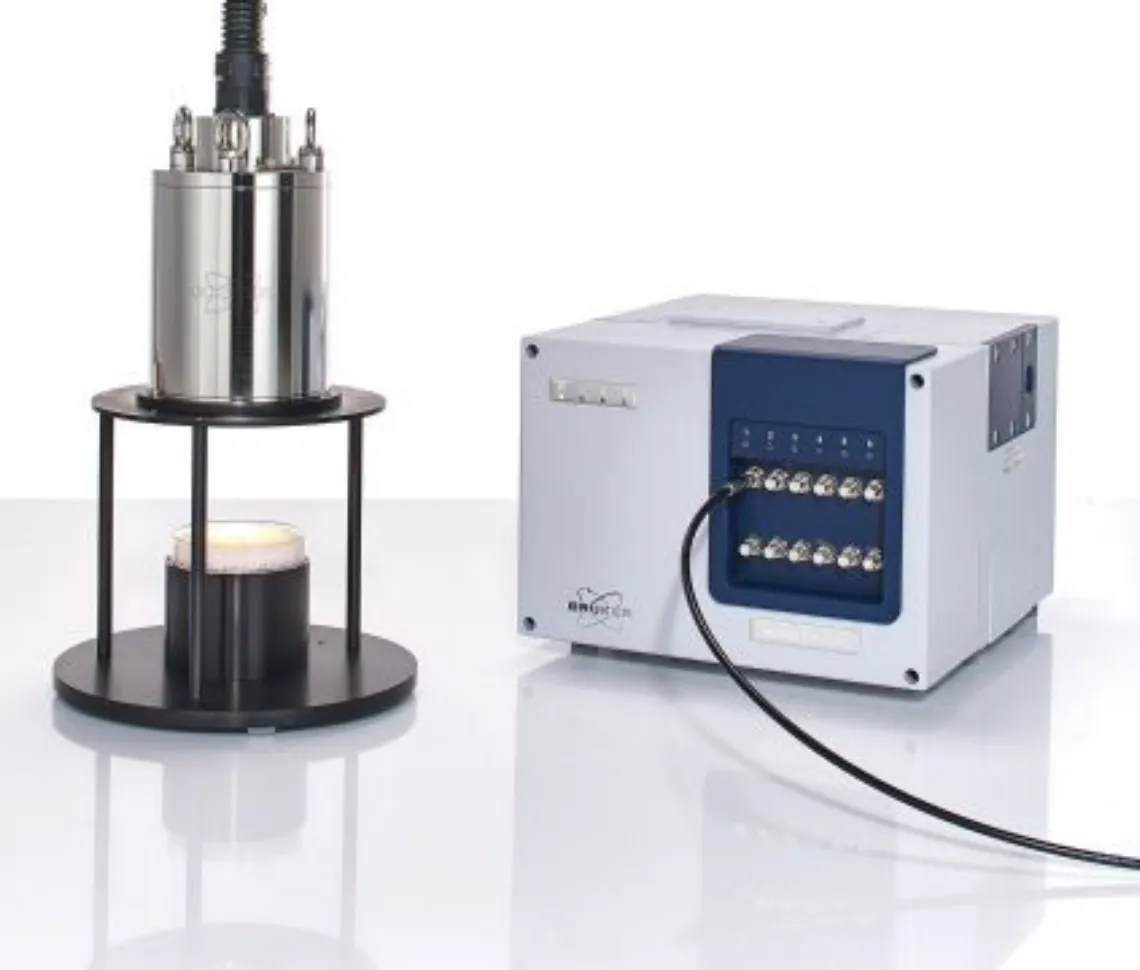

The MATRIX-F II FT-NIR spectrometer allows direct measurements in process reactors and pipelines, leading to a better understanding and control of the process. Its innovative technology provides consistent high quality results, less downtime and direct method transfer. All Bruker process spectrometers are characterized by robustness, long-term stability, and low maintenance costs.
Thousands of installations in the chemical, petrochemical and polymer industry as well as in pharmaceutical production processes and in the field of food and feed manufacturing prove our experience.

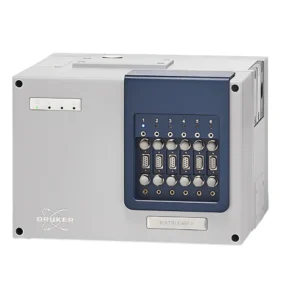

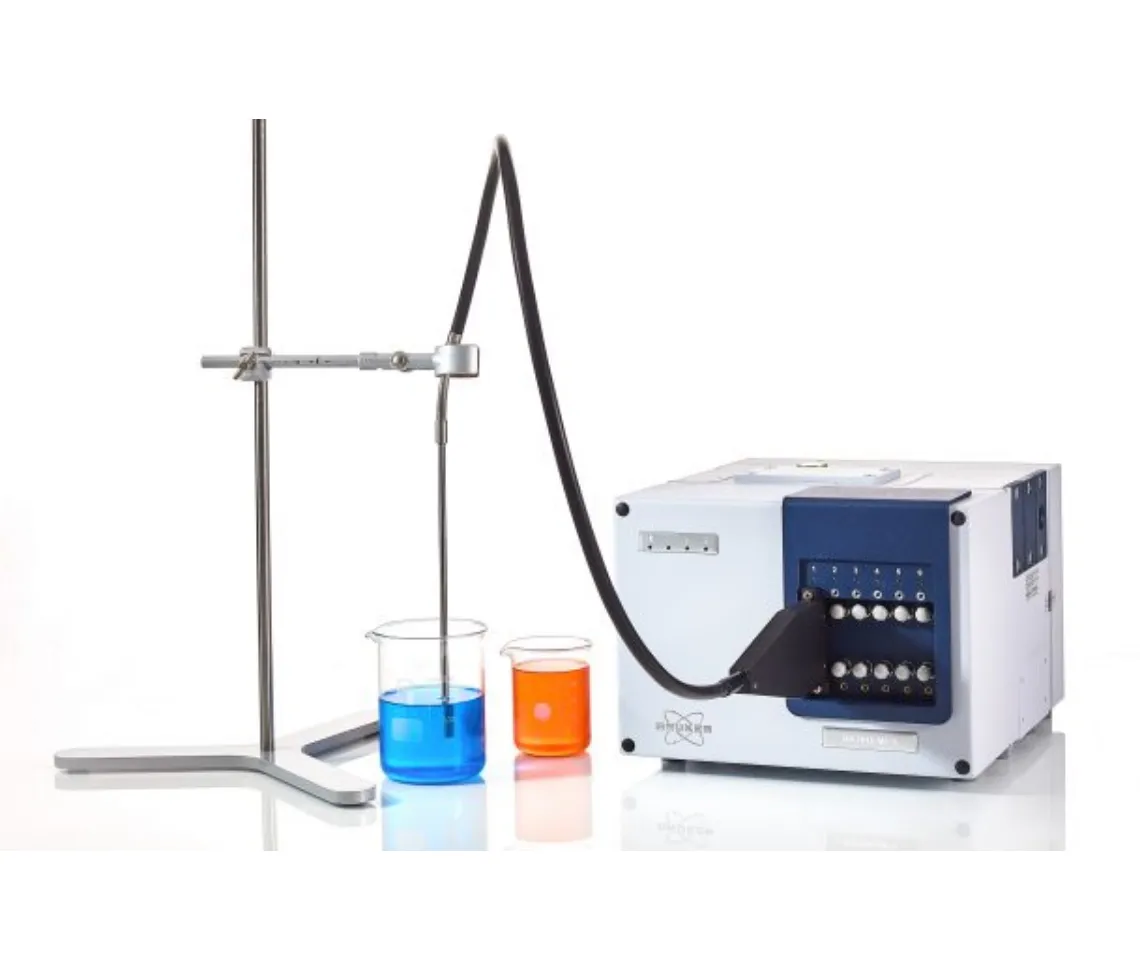

Bruker’s MATRIX-MF II FT-IR spectrometer expands the proven MATRIX series product line utilizing the information rich mid-IR region for use in both laboratory and process environments. The MATRIX-MF II is a process ready FTIR spectrometer that is ideal for real-time monitoring and analysis of chemical and biological reactions.
The MGA Control software provides users with all necessary functions and controls to perform highest precision and accuracy gas mixing ratio measurements with MIRO’s MGAs. It offers an easy-to-use touch screen interface that gets new users up and running in no time thanks to a high degree of automation, while experienced users have full insight and control over the spectral fitting of the measured gas absorptions.
Powerful laser-based Gas Analyzers with ppb to ppt precision for monitoring of greenhouse gases and air pollutants
MIRO’s MGA10-GP has revolutionized and simplified the monitoring of greenhouse gases and air pollutants by enabling simultaneous online measurements of 10 gases at high measurement rates while offering excellent stability and ppt precision.
MIRO’s MGA10-GP analyzers directly measure concentrations of all compounds using mid-infrared laser absorption spectroscopy with Quantum Cascade Lasers as light sources. This allows for highly specific and accurate gas detection along with maximum measurement sensitivity without the need for conversion. Our analyzers are typically free of measurement interferences from other gas species. The intuitive touch display enables fast and easy control. The analyzer is suitable for various applications as Comparison with reference methods – MIRO Analytical (miro-analytical.com) to Mobile monitoring – MIRO Analytical (miro-analytical.com) measurements

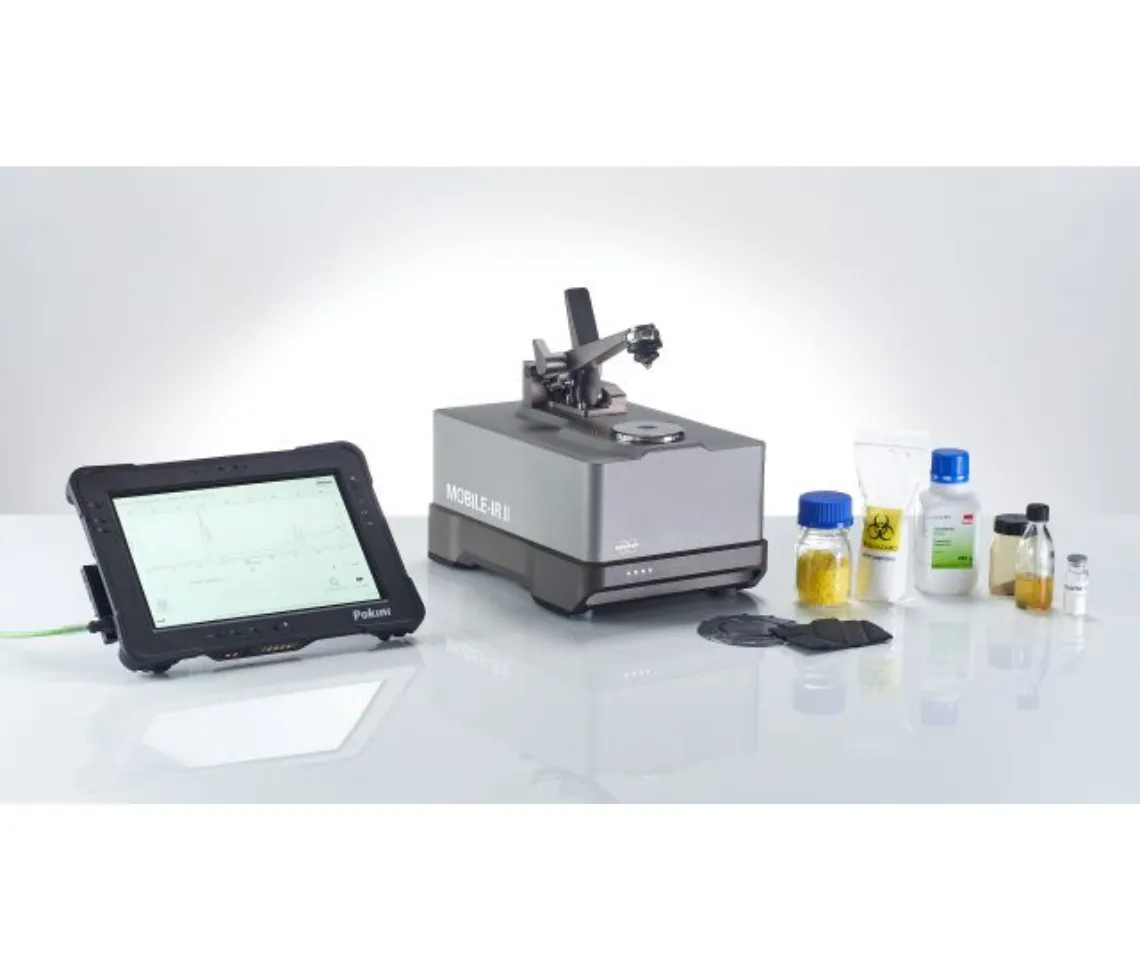

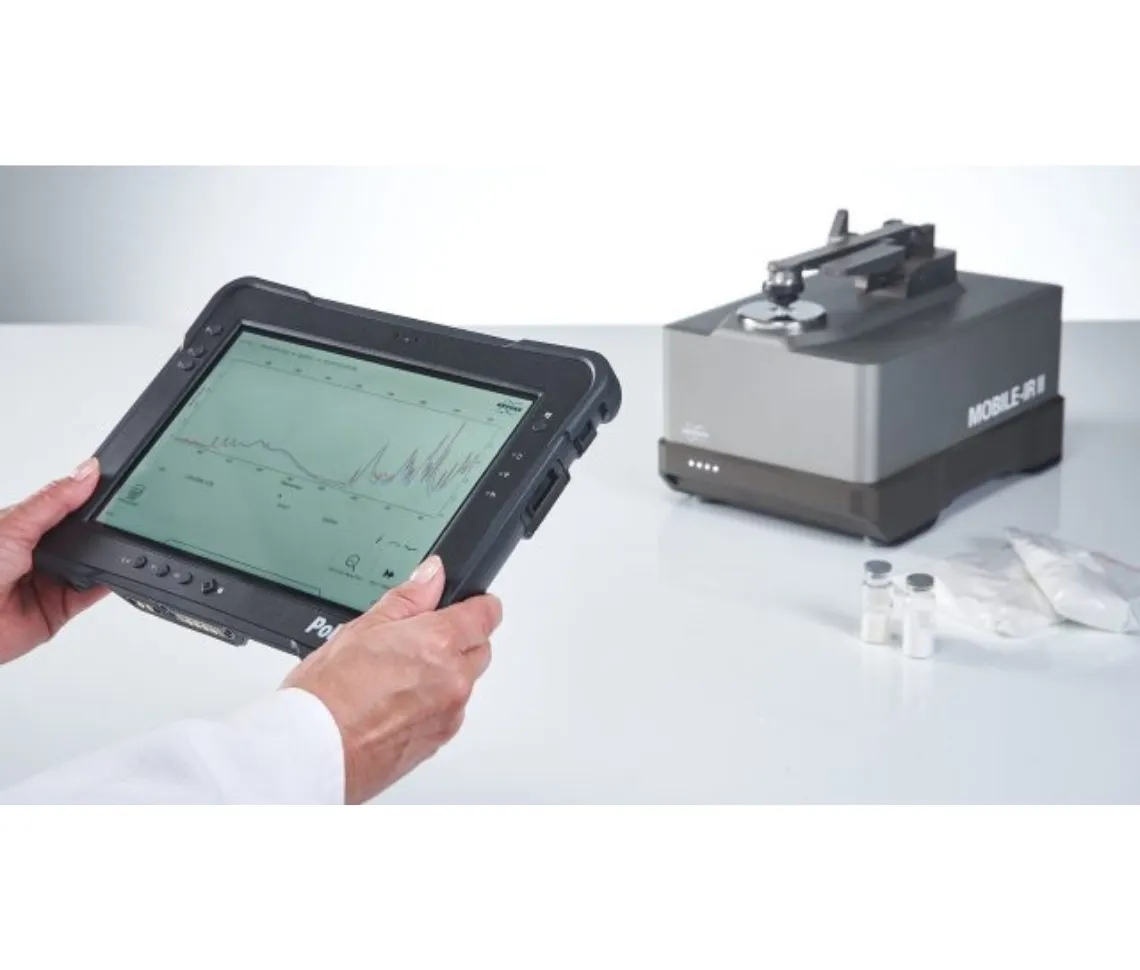

A mobile FT-IR spectrometer with true laboratory performance that you can take anywhere. Even on the road, you never have to sacrifice performance or compromise on reliability or spectral quality. With its IP65 protection, the instrument bravely withstands harsh environments.
MOBILE-IR II Features:
Cryogen-free MCT detector (TE-MCT)
Rugged design (IP65) and vibration damping rubber feet
Internal high-capacity battery
Heatable diamond ATR crystal

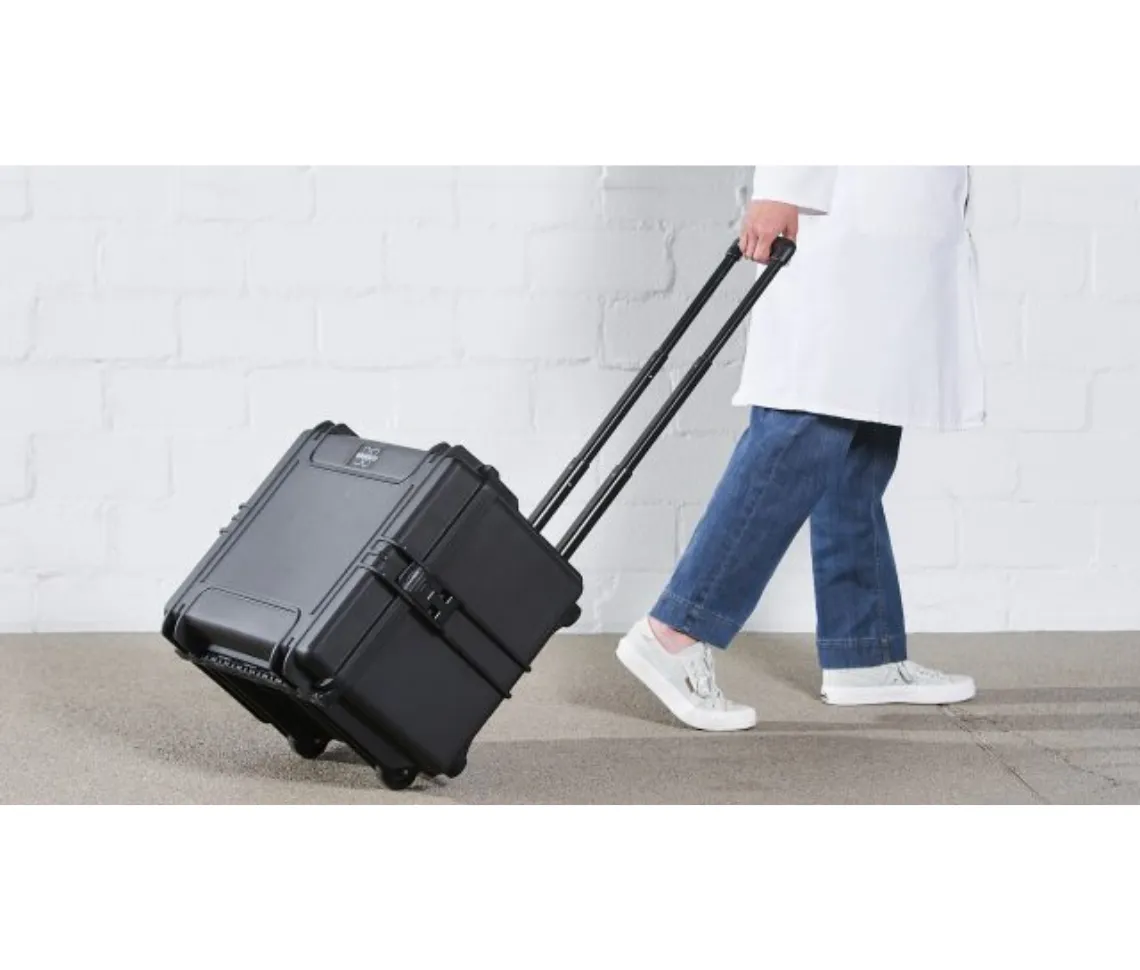

Super-robust carry-case with wheels (IP67)
OPUS TOUCH operating software
RockSolidTM interferometer (>10 years life-time)
CenterGlowTM source (lifetime >5 years)
Diode laser (lifetime >10 years)
MOBILE-IR Benefits:
lab-grade FT-IR performance without liquid N2
Protection against dust and water jets
Operate independent from infrastructure and powergrid
Easy and safe transport of device and accessories
Beginner-friendly software needs only 10 minutes training
The analysis of milk and dairy products is essential for ensuring quality, safety, and compliance with industry standards. Fourier Transform Near Infrared (FT-NIR) technology is renowned for its rapid, non-destructive testing, ensuring precise and repeatable analysis of fat, protein, lactose, and total solids in dairy products.

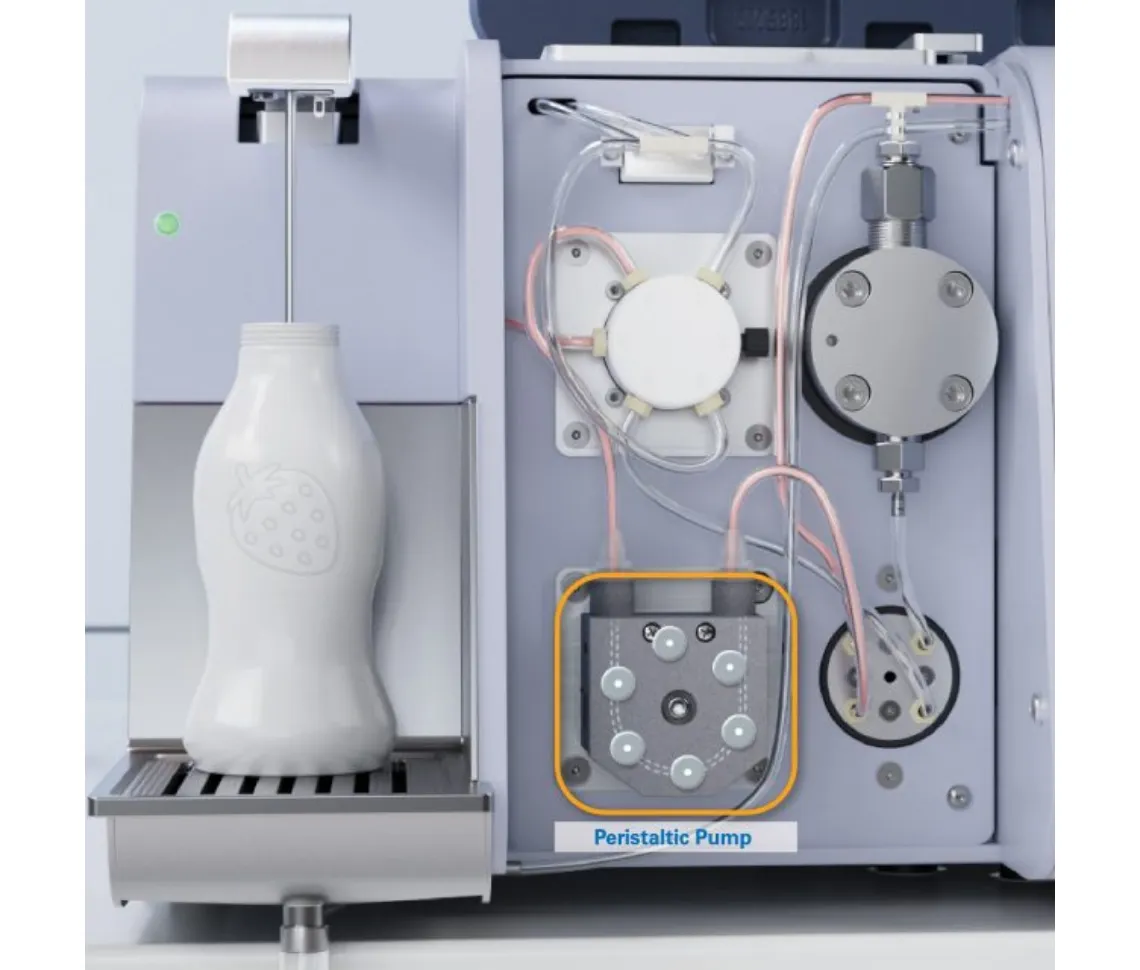

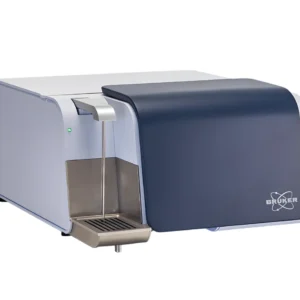

The new MOVE-T is a compact FT-NIR benchtop analyzer focusing on liquid analysis from raw milk to liquid finished products, intermediates, and premixes.
Advanced FT-NIR Technology: Provides precise and reliable analysis.

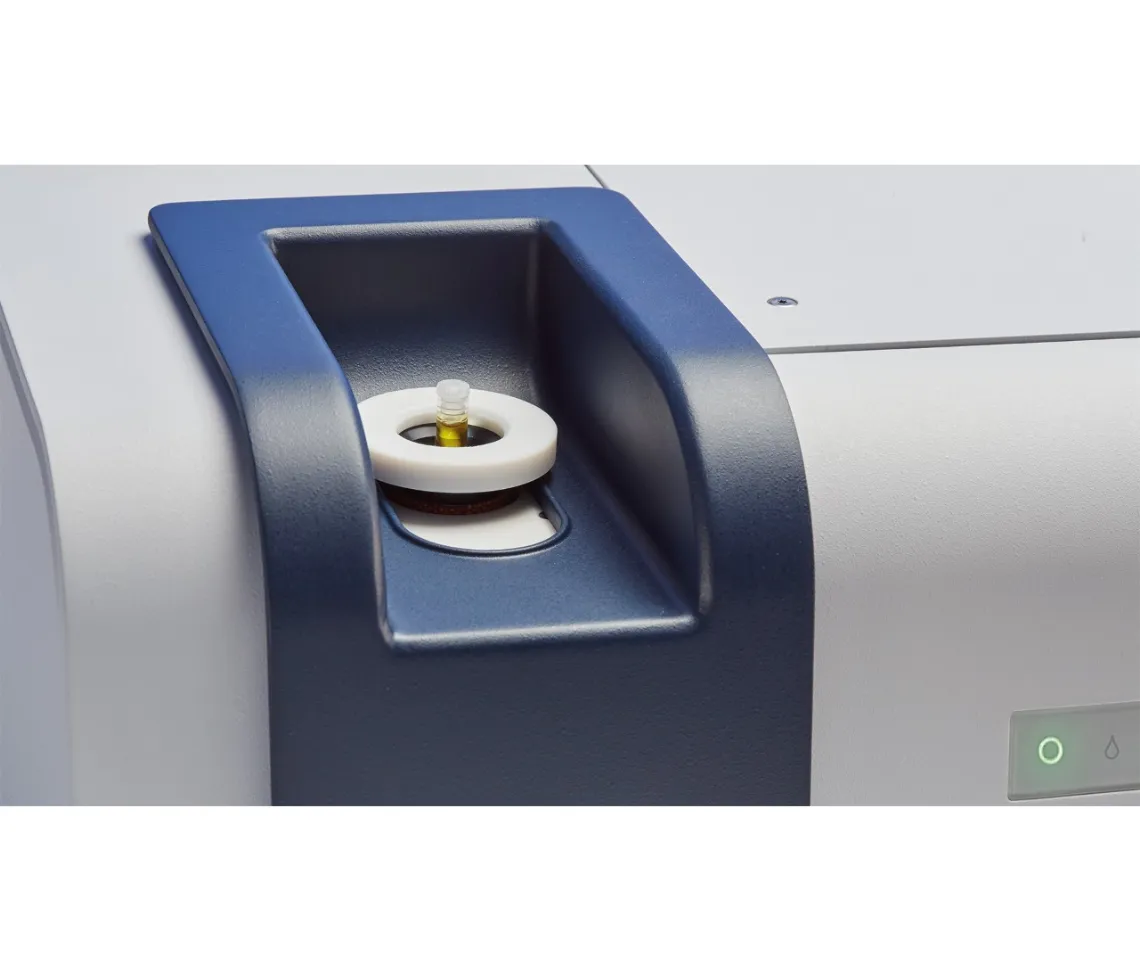

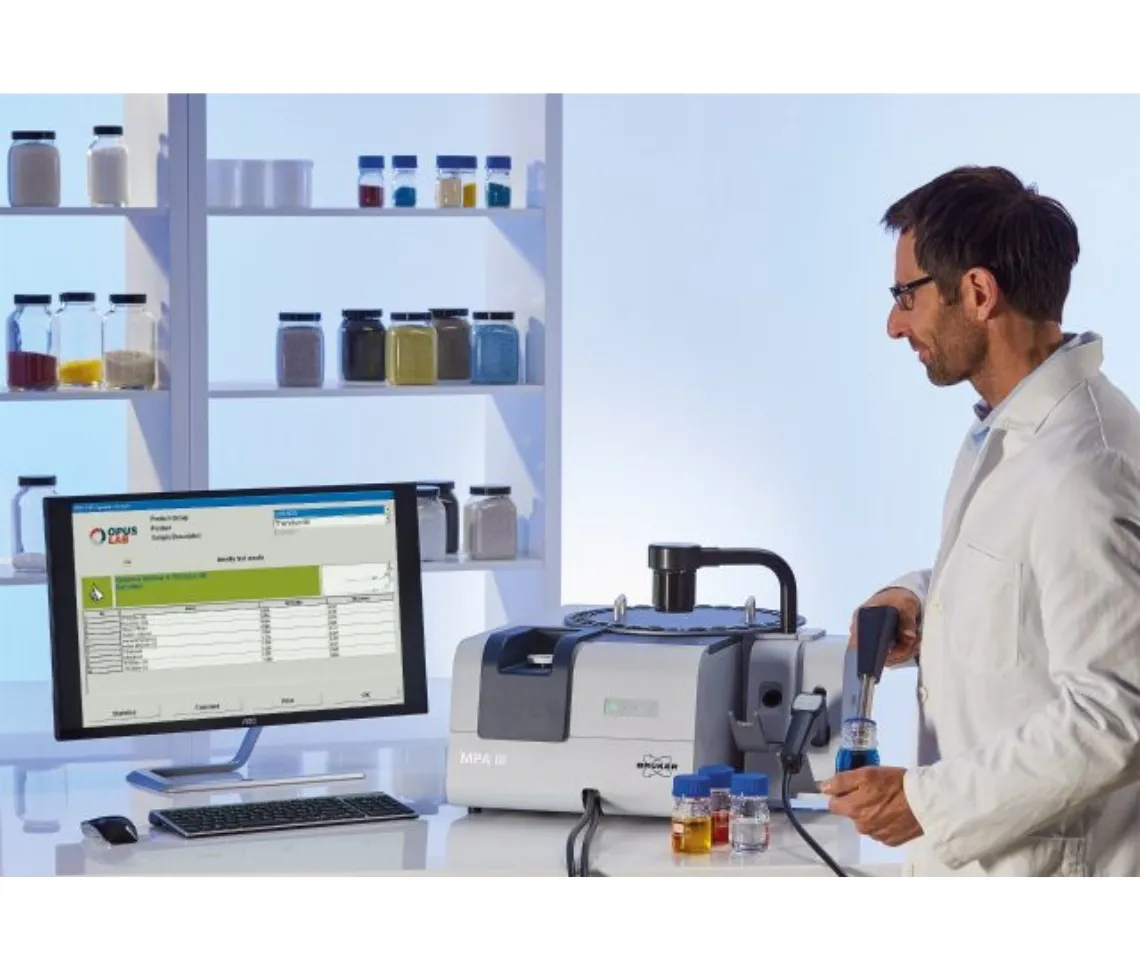

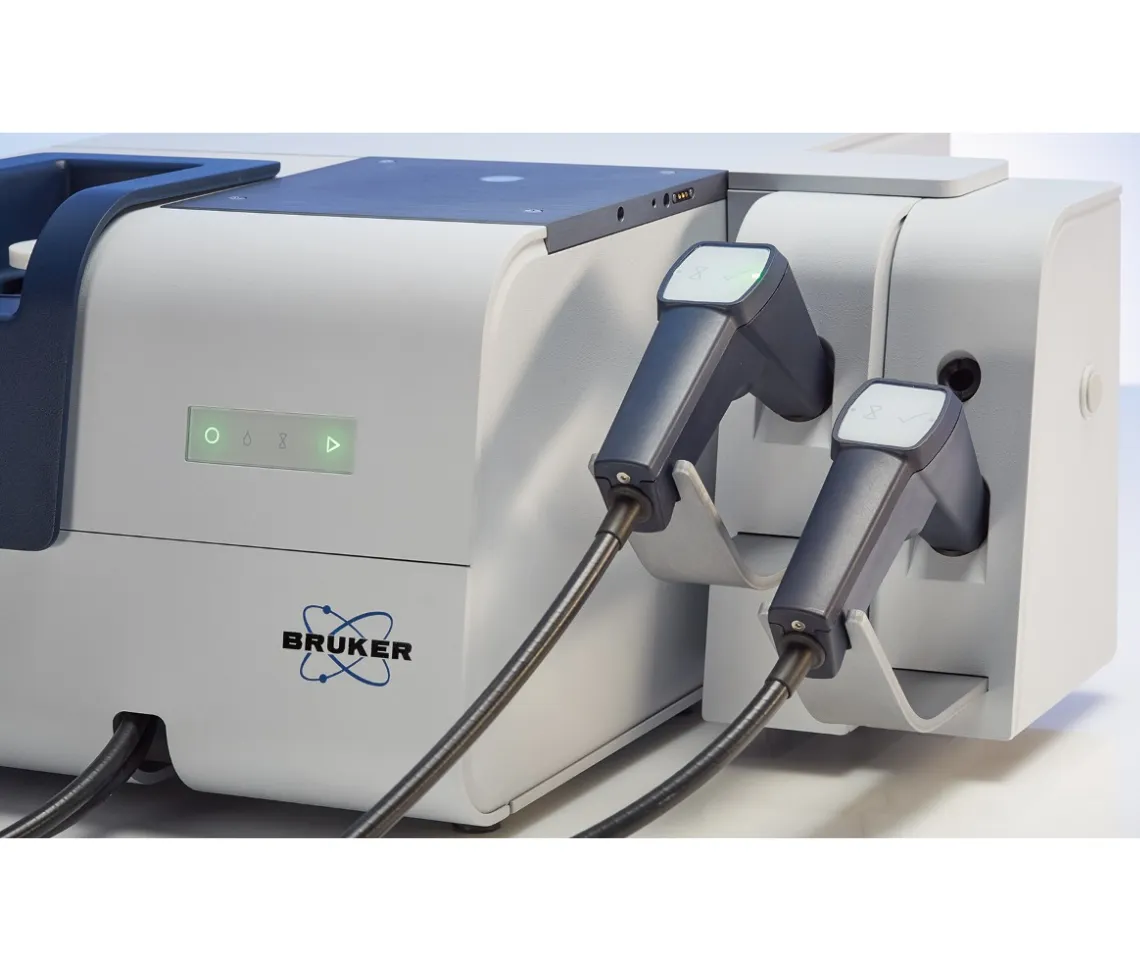

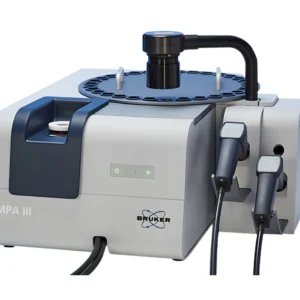

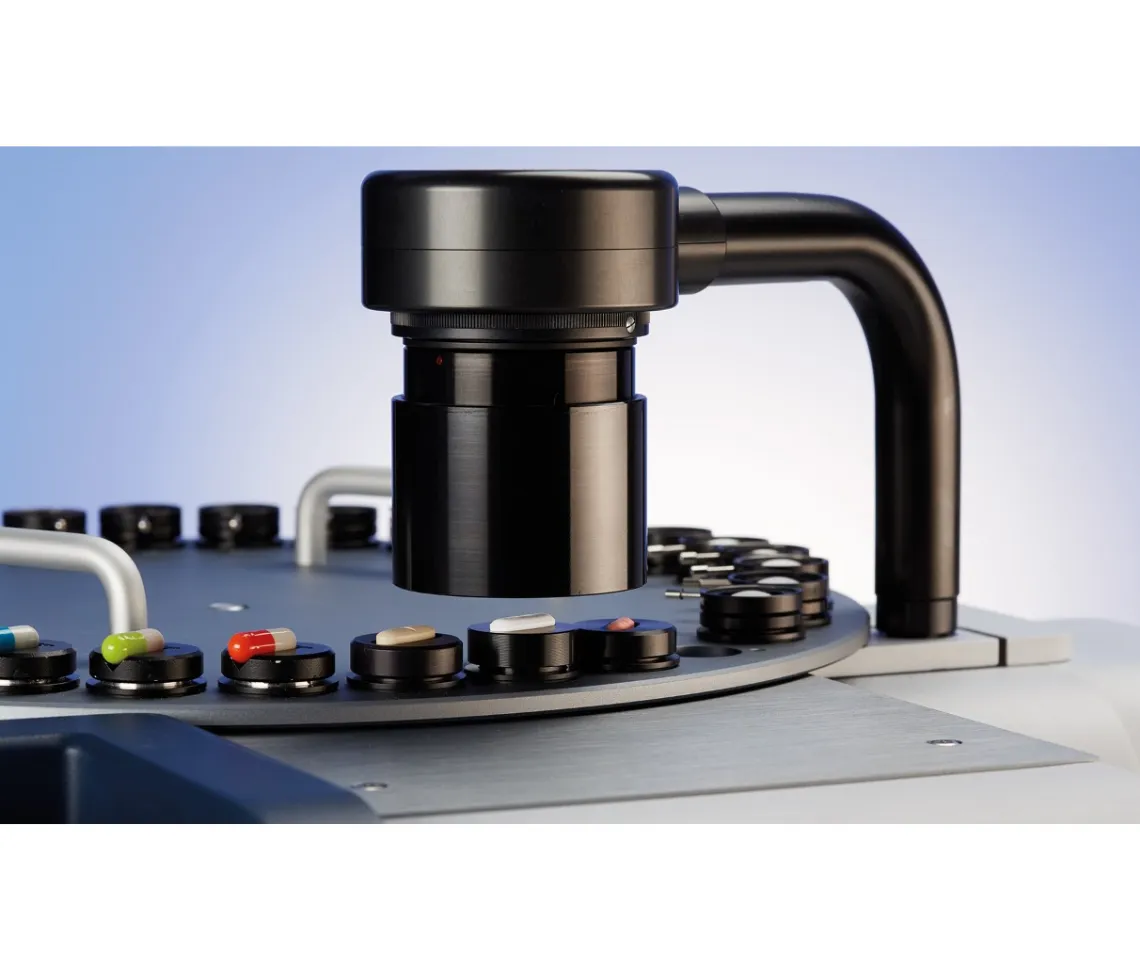

Choosing the best possible sampling method is crucial when solving a specific analysis task. With the MPA III, you have a complete solution at hand for your daily QA/QC work, but also for sophisticated method development studies. Initially it is often not obvious which sampling method is the best. With the MPA III, simply try out several methods choose the best option for you. The possibilities are endless, and due to the modular design of the MPA III, the instrument can easily be adapted to your needs. The robustness of the instrument allows it to be used in the laboratory and factory floor.
The MPA III is available in different configurations to match your application needs.
Initially it is often not obvious which sampling method is the best. With the MPA III, simply try out several methods choose the best option for you.
The possibilities are endless, and due to the modular design of the MPA III, the instrument can easily be adapted to your needs. The robustness of the instrument allows it to be used in the laboratory and factory floor. It can even be placed on a utility cart for mobile applications.
The OMEGA 5 is designed for automated, high-precision, and real-time monitoring of gas concentrations across various applications. Enclosed in a 19’’ rackmount housing, it features a 5-meter multi-reflection gas cell that can be heated to 191 °C. The system is equipped with a TE-MCT detector for low detection limits and continuous measurements as liquid nitrogen is not required.
The OMEGA 5 is operated by the gas analysis software OPUS GA. This software enables the quantification of over 350 compounds without the need for calibration measurements. For an accurate quantification, the pressure and temperature of the gas are constantly recorded throughout the analysis process and taken into account.
The high-resolution option provides the capability to measure with a spectral resolution of better than 1 cm-1 (standard: better than 2 cm-1). This enhanced spectral resolution proves invaluable in numerous applications, enabling the identification and quantification of gas compounds, even within complex gas mixtures with a significant degree of overlapping infrared signals.

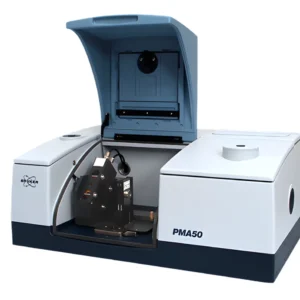

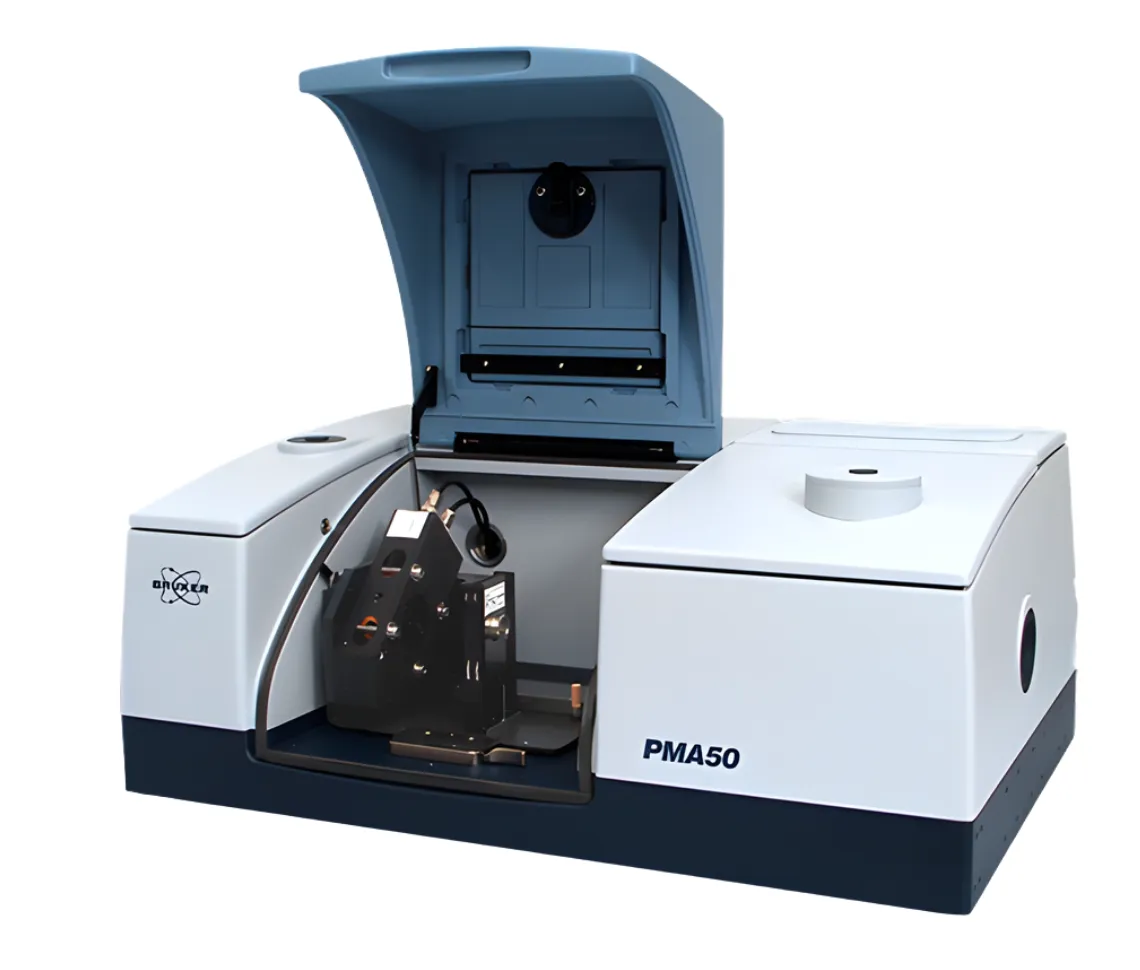

The external accessory PMA 50 has been specially developed for Polarization Modulation measurements. It can be adapted to Bruker INVENIO and VERTEX FT-IR spectrometers. All optic and electronic components in the PMA 50 module are optimized for the Polarization Modulation. Both linear dichroitic measurement techniques like PM-IRRAS and circular dichroitic experiments like VCD spectroscopy can be realized using this dedicated system.
The core of the Polarization Modulation technique is the Photoelastic Modulator (PEM) with a nominal modulation frequency of 42 kHz. With the help of the parallel 24-bit dual-channel data acquisition technology the sum and the difference signals can be collected simultaneously with highest sensitivity. The PMA 50 module exhibits short beam path, and therefore provides optimal S/N ratio and stability.

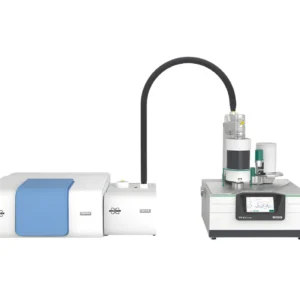

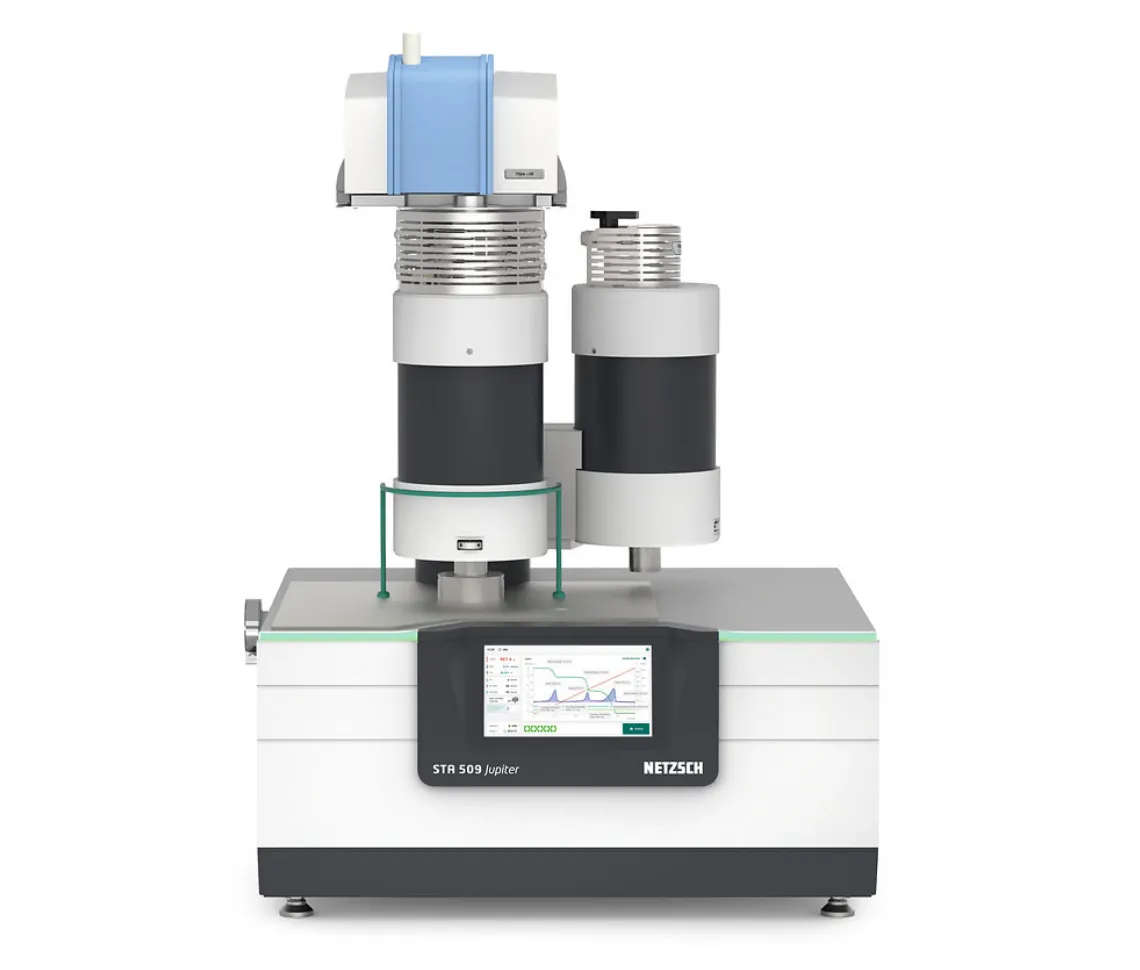

Thermal Analysis provides ideal tools for the characterization of organic and inorganic, either solids or liquids. Thermodynamic transitions, thermal stability, decomposition and chemical reactions can be detected and quantified with high accuracy over a broad temperature range
The identification of gases released directly from the sample or during thermal treatment cannot be performed just by thermal analysis, but coupling a spectroscopic method such as Fourier-Transform-Infrared (FT-IR) spectroscopy is an excellent solution.

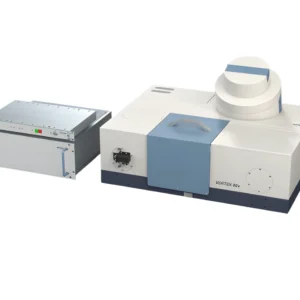

The unique verTera extension upgrades the famous VERTEX 80v to the first and only combined FT-IR/continuous wave THz spectrometer.
verTera makes use of high precision semiconductor based photomixers, converting near infrared laser light into THz radiation. Source and detector are integrated into the VERTEX 80v beam path and the class 1 NIR laser radiation is connected via fiber and vacuum tight feedthrough.
Vacuum operation eliminates unwanted atmospheric interferences and provides utmost stable conditions, resulting in significantly higher THz performance.
The VERTEX NEO R represents the new generation of vacuum FT-IR spectrometers, designed to set new standards in advanced research applications. With an emphasis on flexibility, precision, and innovation, it delivers the ultimate support for cutting-edge scientific exploration.
Building on 50 years of success in the FT-IR academic and research market, we proudly present our next-generation FT-IR vacuum research spectrometer VERTEX NEO R. Designed with cutting-edge technology and well-proven unique features, this new instrument is not just an upgrade – it’s a revolution! More powerful electronics, more flexible optics bench, all new vacuum ATR technology, VERTEX NEO R is designed to push the boundaries of scientific discovery and continue our legacy of superior VERTEX performance.
