H2 POWER 10L is a system able to provide up to 1Nm3/h of hydrogen. The hydrogen is produced from three Hydrogen Generators “6920.16.330” connected in parallel mode. 6920.16.330 uses an electrolytic cell with polymeric membrane (PEM) to produce pure hydrogen from distilled water. No acid or alkaline solutions are used.
It is provided with an internal 1.1 litres tank with electronic level control and an automatic fill function “Autorefill” from an external source. Its innovative gas drying system is completely maintenance-free and allows continuous operation, 24 hours a day. The exclusive, electronically-controlled, gas/liquid separator automatic checks for internal leaks whenever starting the unit, and a constant control of operating parameters guarantees maximum safety. The touch-screen LCD interface provides a direct simple control and management of all functions on the unit.
The RS232 and LAN ports allow a remote control of the system from anywhere in the world.
The HydroGen series HG 5U PRO 3300 V4 is able to generate 3300 cc/min of Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 PSI). The HG 5U PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free. The HG 5U PRO is the ideal Hydrogen for all GC-FID detectors. The on-board CPU constantly controls the operating parameters to guarantee full safety. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
The HydroGen series HG BASIC is able to generate up to 700 cc/min of Hydrogen with purity better than 99.9999% and pressure up to 10 bar (145 psi). The HG BASIC includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used.
The innovative drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to its innovative humidity safe guard, HG BASIC is completely maintenance-free and allows continuous operation, 24 hours a day. The on-board CPU automatically check for internal leaks and constantly control the operating parameters to guarantee full safety.
Up to 20 units can be connected in parallel mode using an external control box. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
Stackable with various other models: AG-OFCAS35; NG-EOLO; AG-ZA-Fid.
The HG KUBE is able to generate up to 260 cc/min of Hydrogen with purity better than 99.9996% and pressure up to 9 bar (130 psi). The HG KUBE includes a cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are involved.
The innovative static drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to it’s unique humidity safe guard, it is completely maintenance-free and allows continuous operation, 24 hours a day.
The on-board CPU automatically checks for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
The hydrogen generators of the series HG PRO is able to generate up to 1500 cc/min of Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 psi). The HG PRO includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used.
The innovative gas drying system (two-column drying PSA system with automatic regeneration) ensures the maximum grade of hydrogen purity, it is completely maintenance-free and allows continuous operation, 24 hours a day. The on-board CPU automatically check for internal leaks and constantly control the operating parameters to guarantee full safety.
Up to 20 units can be connected in parallel using an external control box. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
Stackable with various other models: AG-OFCAS35; NG-EOLO; AG-ZA-Fid

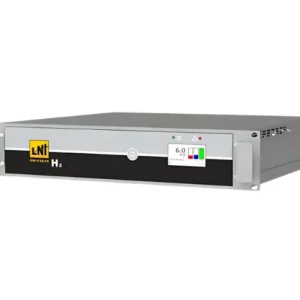

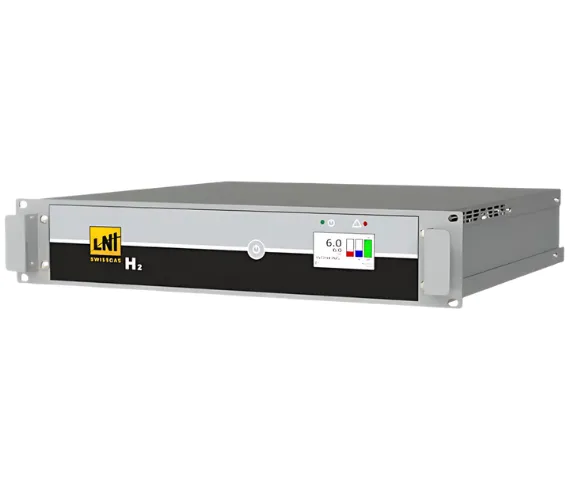

The HydroGen series HG RACK 19” 2U BASIC is able to generate up to 600 cc/min of Hydrogen with purity better than 99.9999% and pressure up to 10 bar (145 psi). The HG 2U 19 inch BASIC includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used.
The innovative drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to its innovative humidity safe guard, HG 19 inch 2U BASIC is completely maintenance-free and allows continuous operation, 24 hours a day.
The on-board CPU automatically check for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box.
The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.

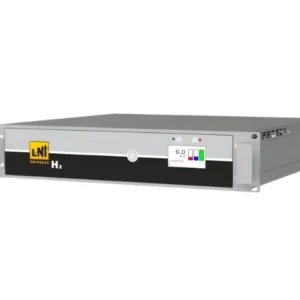

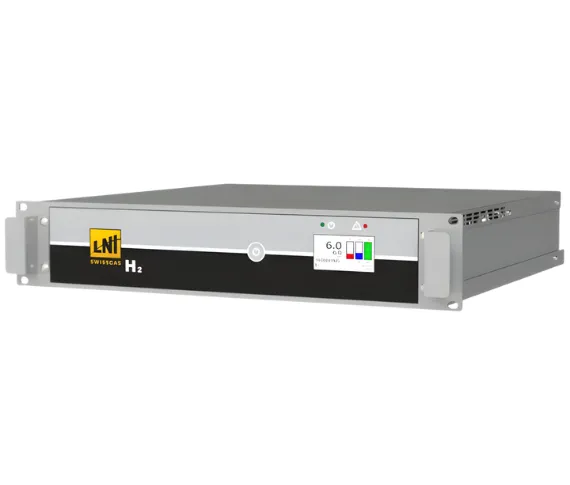

The HydroGen series HG RACK 19“ 2U PRO is able to generate up to 600cc/min Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 PSI).
The HG RACK 19 inch 2U PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free.
The HG RACK 19 inch 2U PRO is the ideal Hydrogen for all GC-FID detectors. The on-board CPU constantly control the operating parameters to guarantee full safety.
Up to 20 units can be connected in parallel mode using an external control box. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.

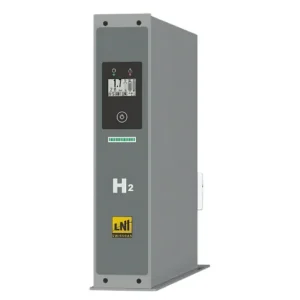

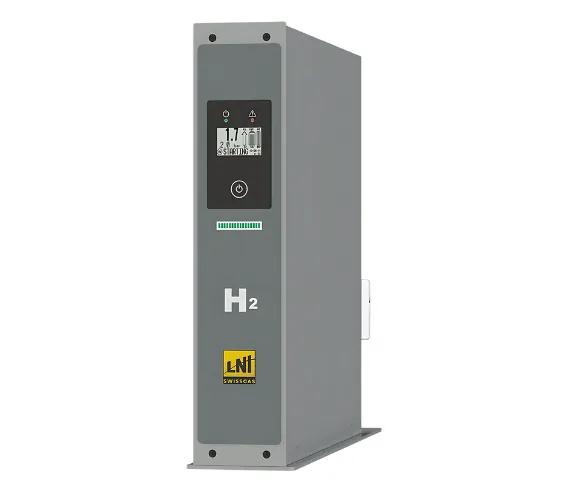

The HydroGen series HG ST PRO is able to generate up to 600 cc/min Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 PSI).
The HG ST PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free.
The HG ST PRO is the ideal Hydrogen for all GC-FID detectors. The on-board CPU constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box.The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit
The HydroGen series HG 4U PRO is able to generate 2000 cc/min of Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 PSI). The HG 4U PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free. The HG 4U PRO is the ideal Hydrogen for all GC-FID detectors. The on-board CPU constantly control the operating parameters to guarantee full safety. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
The HydroGen series HG 5U PRO 4000 is able to generate 4000 cc/min of Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 PSI). The HG 5U PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free. The HG 5U PRO is the ideal Hydrogen for all GC-FID detectors. The on-board CPU constantly controls the operating parameters to guarantee full safety. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
The HG KUBE V2 is able to generate up to 300 cc/min of Hydrogen with purity better than 99.9996% and pressure up to 10 bar (145 psi). The HG KUBE V2 includes a cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are involved.
The innovative static drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to its unique humidity safe guard, it is completely maintenance-free and allows continuous operation, 24 hours a day.
The on-board CPU automatically checks for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
The HG MINI is able to generate up to 300 cc/min of Hydrogen with purity better than 99.9995% and pressure up to 12 bar (174 psi). The HG MINI includes a cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are involved.
The innovative static drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to it’s unique humidity safe guard.
The on-board CPU automatically checks for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box. The LED matrix interface provides a simple and immediate display of the status of the unit

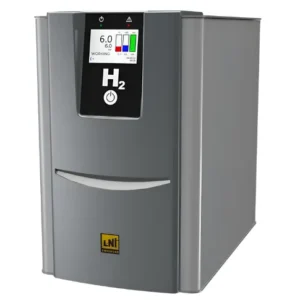

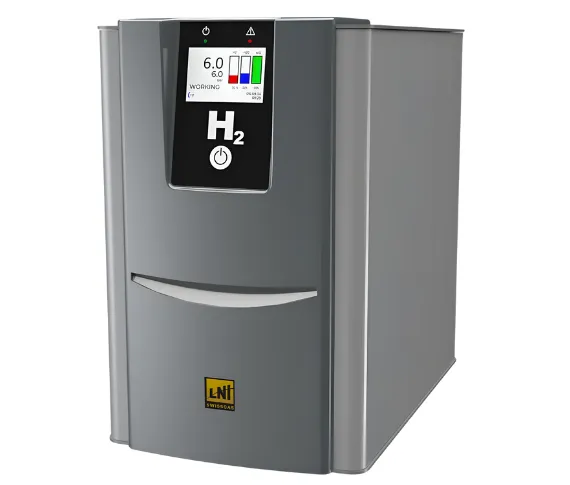

The HydroGen series HG PROLN is able to generate up to 1500 cc/min of Hydrogen with purity better than 99.99999% a pressure up to 16 bar (232 psi) and a N2 content < 1 ppm.
The HG PRO includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used.
The innovative gas drying system (two-column drying PSA system with automatic regeneration) ensures the maximum grade of hydrogen purity, it is completely maintenance-free and allows continuous operation, 24 hours a day.
The on-board CPU automatically checks for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel using an external control box.
The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.

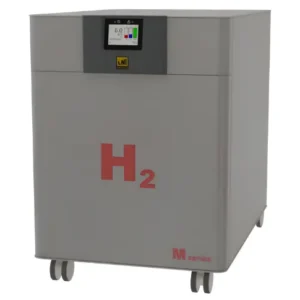

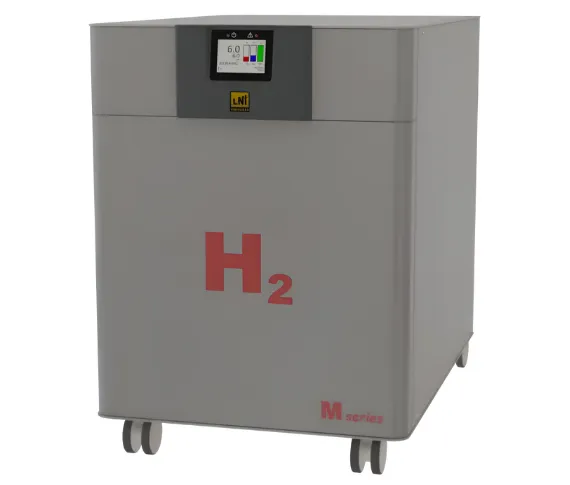

The HydroGen series HG PRO M can generate up to 20 L/min of Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 psi). The HG PRO M includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using ultra pure water. No acid or alkaline solutions are used.
The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity. It is completely maintenance-free. The HG PRO M series provides the ideal Hydrogen for many applications, such as CVD, Central Laboratory Supply and other applications in need for reliable supply of UHP. The on-board CPU constantly controls the operating parameters to guarantee full safety. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.

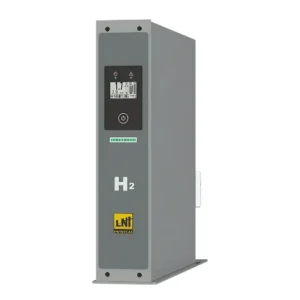

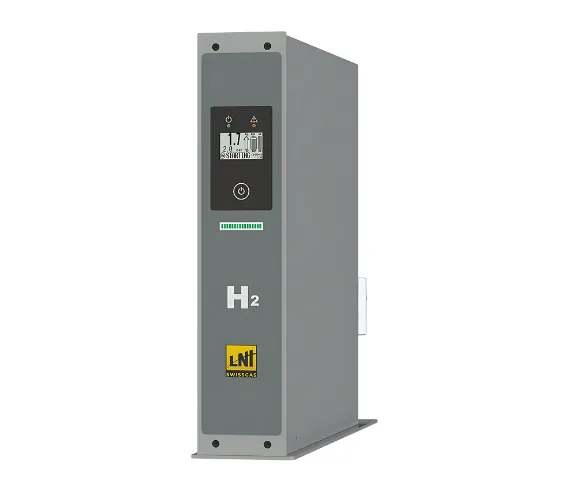

The HydroGen series HG ST BASIC is able to generate up to 600 cc/min of Hydrogen with purity better than 99.9999% and pressure up to 10 bar (145 psi). The HG ST BASIC includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used. The innovative drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to its innovative humidity safe guard, HG ST BASIC is completely maintenance-free and allows continuous operation, 24 hours a day.
The on-board CPU automatically check for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box.The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.

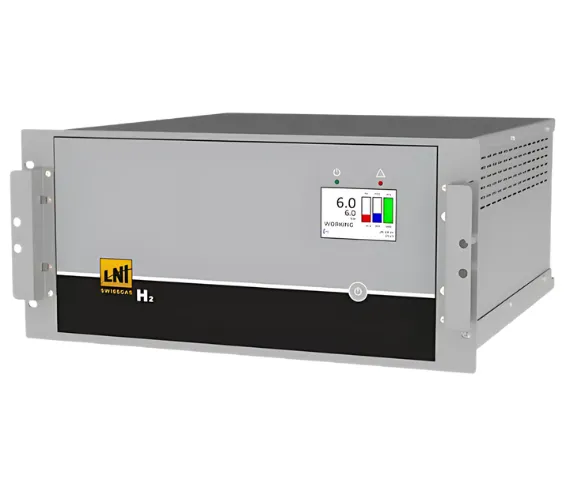

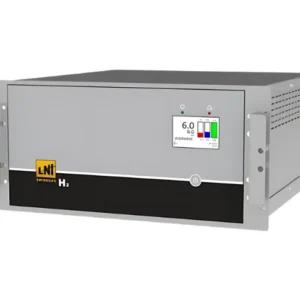

The HydroGen series HG 5U PRO 2000 is able to generate 2000 cc/min of Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 PSI). The HG 5U PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free. The HG 5U PRO is the ideal Hydrogen for all GC-FID detectors. The on-board CPU constantly controls the operating parameters to guarantee full safety. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
