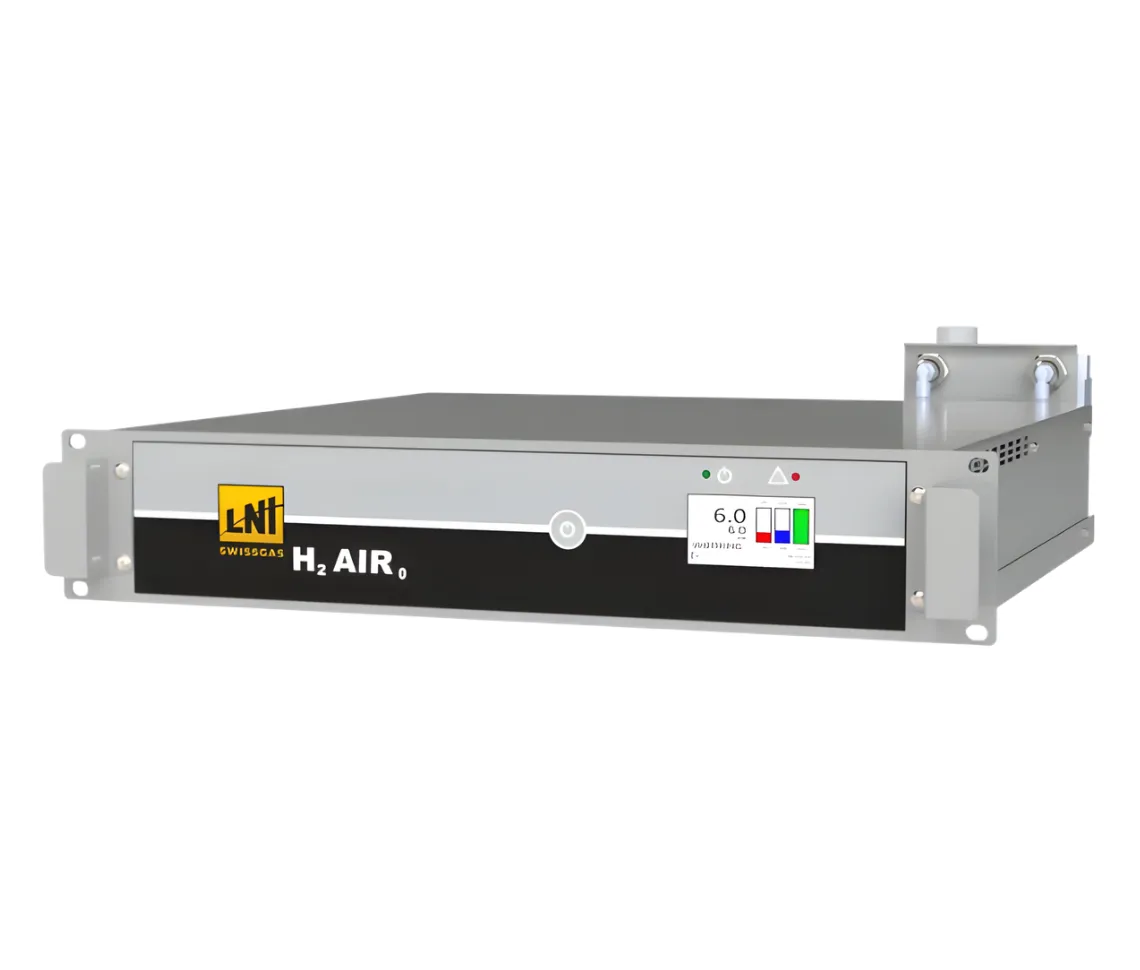

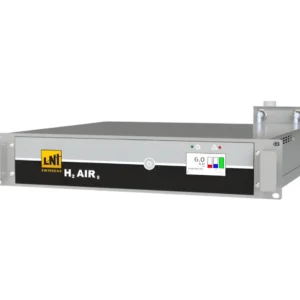

The HydroGen series HGA RACK 19” 2U BASIC is able to generate up to 600 cc/min of Hydrogen with purity better than 99.9999% and pressure up to 10 bar (145 psi). An AirGen output can deliver hydrocarbon free pure Air with a flow up to 2000 cc/min. The HGA 2U 19 inch BASIC includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used.
The innovative drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to its innovative humidity safe guard, HGA 19 inch 2U BASIC is completely maintenance-free and allows continuous operation, 24 hours a day.
The on-board CPU automatically checks for internal leaks and constantly controls the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box.
The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.

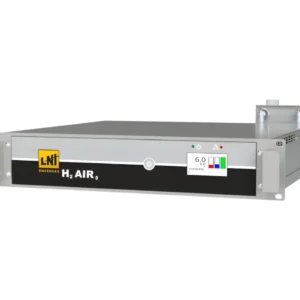

The HydroGen series HGA RACK 19” 2U PRO is able to generate up to 600 cc/min Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 PSI). An AirGen output can deliver hydrocarbon free pure Air with a flow up to 2000 cc/min. The HGA RACK 19 inch 2U PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free.
The HGA RACK 19 inch 2U PRO is the ideal Hydrogen and Air Generator for all GC-FID detectors. The on-board CPU constantly controls the operating parameters to guarantee full safety. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.

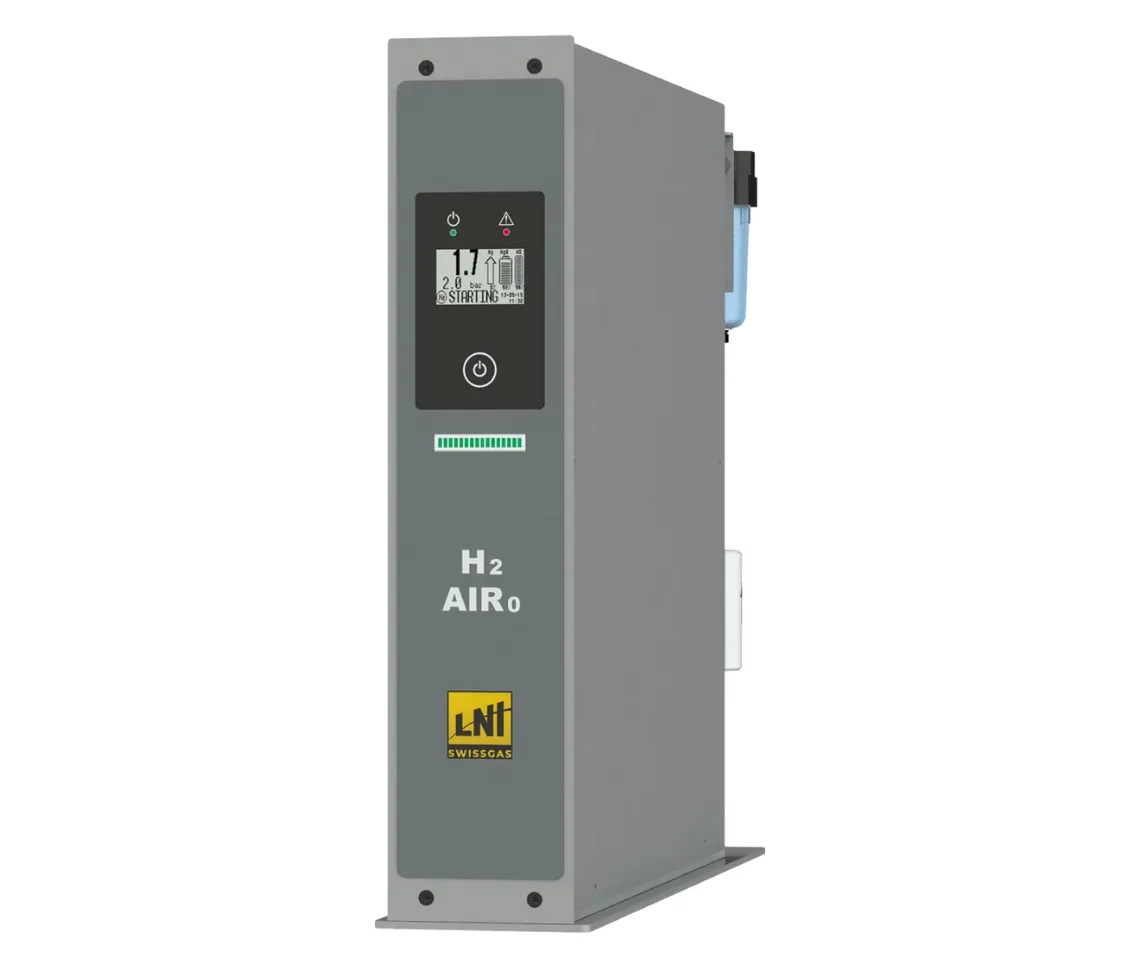

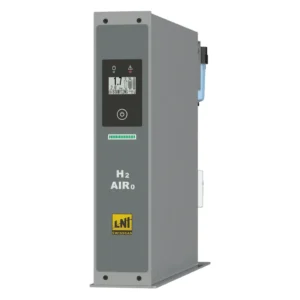

The HydroGen series HGA ST BASIC is able to generate up to 600 cc/min of Hydrogen with purity better than 99.9999% and pressure up to 10 bar (145 psi). An AirGen output can deliver hydrocarbon free pure Air with a flow up to 2000 cc/min. The HGA ST BASIC includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used.
The innovative drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to its innovative humidity safe guard, HGA ST BASIC is completely maintenance-free and allows continuous operation, 24 hours a day.
The on-board CPU automatically checks for internal leaks and constantly controls the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box.
The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.

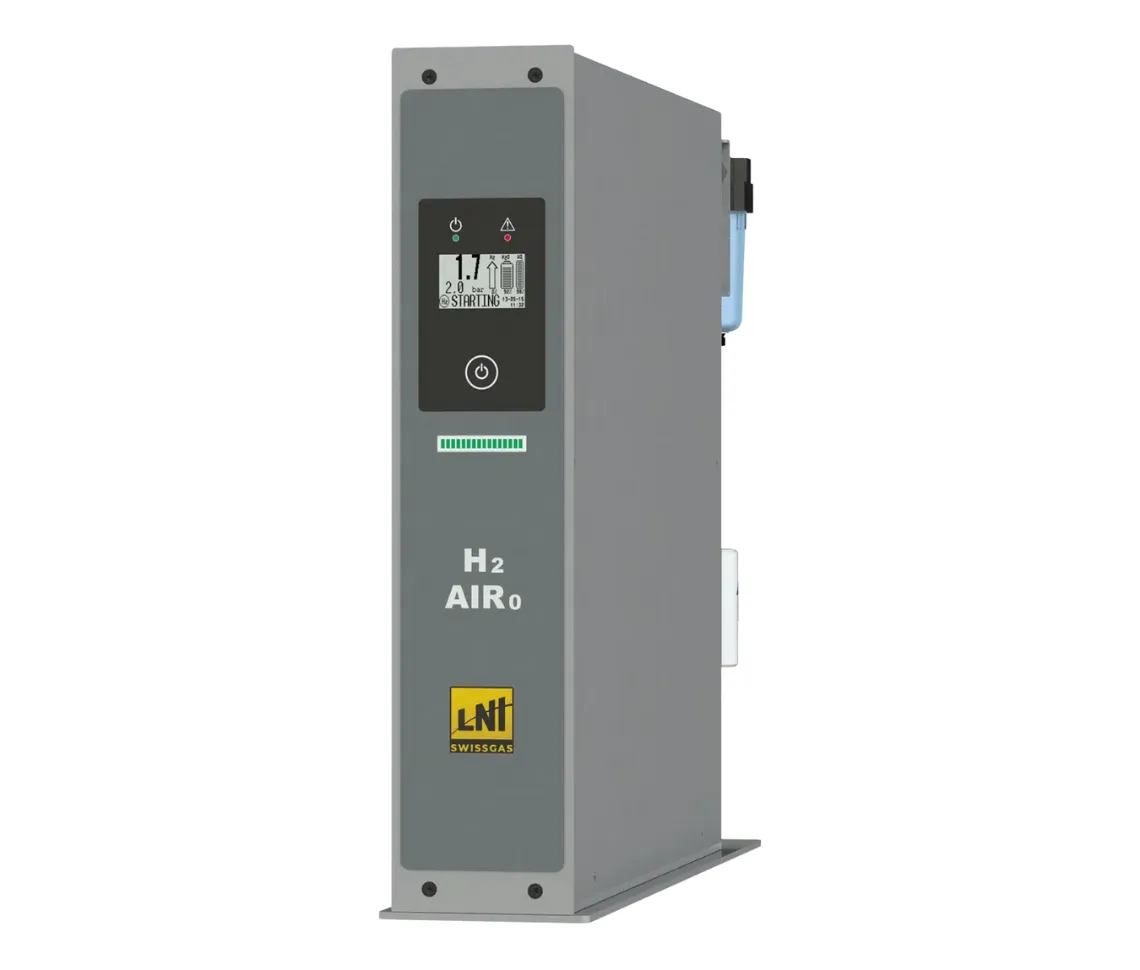

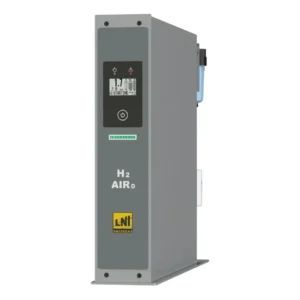

The HydroGen series HGA ST PRO is able to generate up to 600 cc/min of Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 psi). An AirGen output can deliver hydrocarbon free pure Air with a flow up to 2000 cc/min.
The HGA ST PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free.
The HGA ST PRO is the ideal Hydrogen and Air Generator for all GC-FID detectors. The on-board CPU constantly controls the operating parameters to guarantee full safety. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.

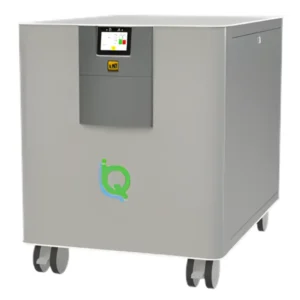

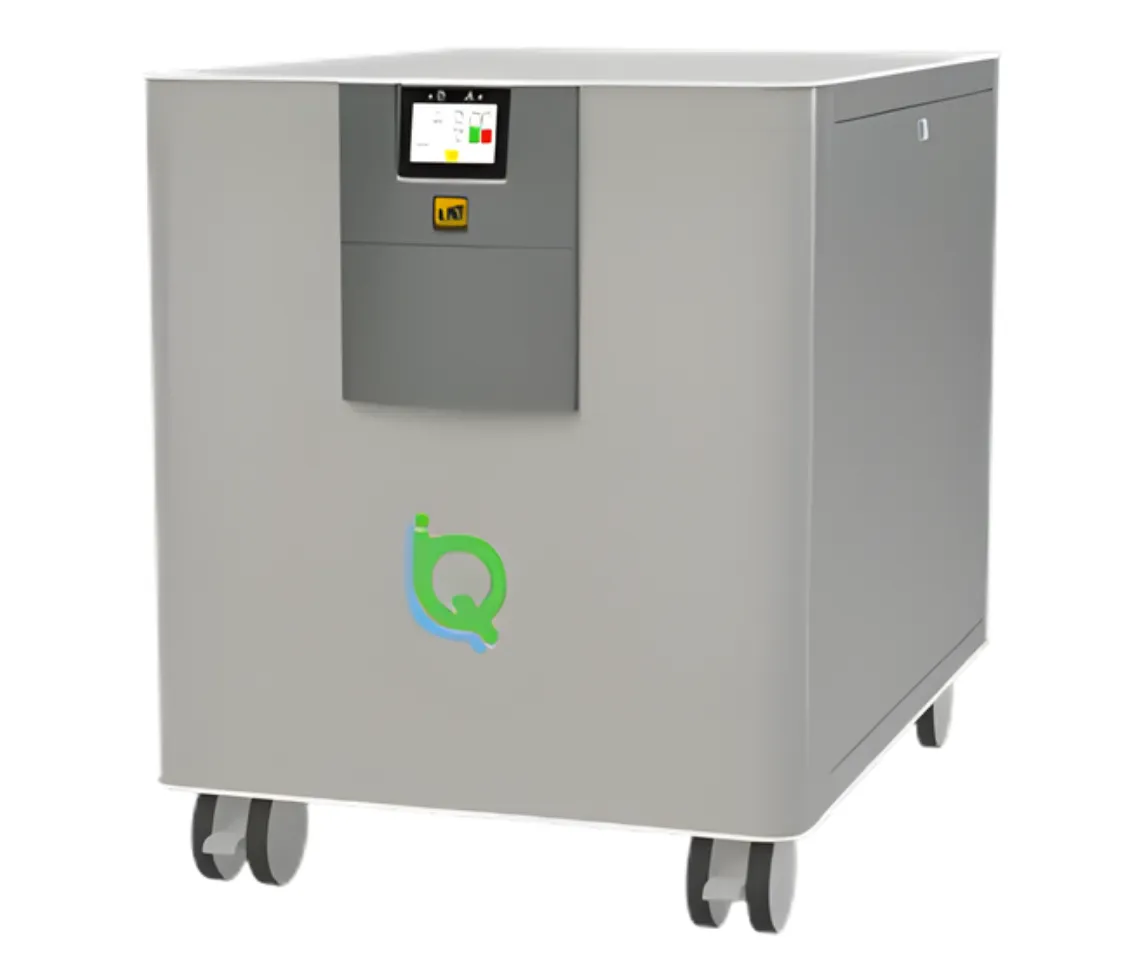

The NitroGen series NGA CASTORE XL iQ are Membrane Nitrogen and dry air Generators. They are engineered to transform standard compressed air into a safe, regulated supply of Nitrogen up to 40 L/min with a purity up to 99.8%. A channel can provide up to 60 L/min of compressed, dry and regulated air.
This NGA series is equipped with a scroll built-in oil less compressor with inverter technology.
The new iQ series is equipped with the innovative direct drive motor-compressor system that result in lower noise than the previous version.
The exclusive electronic flow control combined with the compressor control by the inverter allows to generate Nitrogen with a higher purity using a smaller volume at less pressure of air which results in reduced energy costs and increase the life time of the compressor. Continuous control of the operating parameters of Nitrogen allows to maintain the system at its maximum efficiency.
The CASTORE XL iQ with its dual Nitrogen and Air outlets has been developed to meet specific requirements in term of gas, flow, purity and pressure in LC-MS applications. It can be used for the evaporation of solvents in samples being analysed.

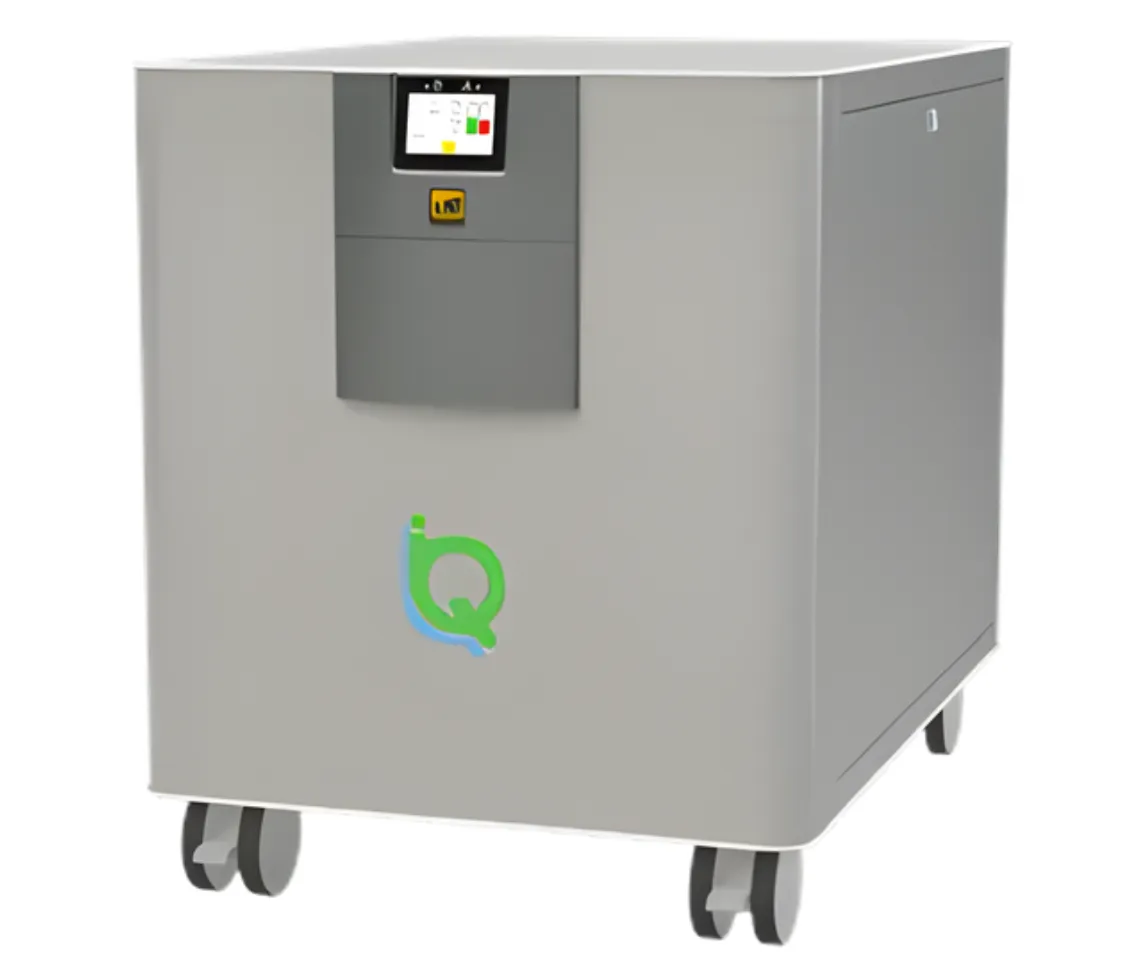

NGA CASTORE XL iQ MPAES is a Nitrogen Generator with Membrane technology.
It is engineered to transform standard compressed air into a safe, regulated supply of Nitrogen up to 40 L/min with a purity up to 99.95% plus a second outlet of dry and clean air. A special carbon filter is used to remove VOC.
The CASTORE XL iQ MPAES with its dual Nitrogen and Air outlets has been developed to meet specific requirements in term of gas, flow, purity and pressure for Agilent MP AES applications.
It can be used for LC-MS and the evaporation of solvents in samples being analysed.
The new iQ generators are equipped with an innovative direct drive motor-scroll compressor system (oil less) with inverter technology.
The exclusive electronic flow control combined with the compressor control by the inverter allows to generate Nitrogen with a higher purity using a smaller volume at less pressure of air which results in reduced energy costs and increase the life time of the compressor. Continuous control of the operating parameters of Nitrogen allows to maintain the system at its maximum efficiency.

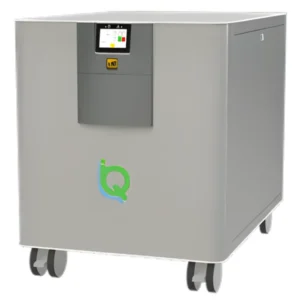

The NitroGen series NGA CASTORE XL iQ SHI is a Membrane Nitrogen and dry air Generator. It is engineered to transform standard compressed air into a safe, regulated supply of Nitrogen up to 30 L/min with a purity up to 99.8%. A channel can provide up to 30 L/min of compressed, dry, filtered and regulated air.
This is equipped with a scroll built-in oil less compressor with inverter technology. The new iQ series is equipped with the innovative direct drive motor-compressor system that result in lower noise than the previous version.
The exclusive electronic flow control combined with the compressor control by the inverter allows to generate Nitrogen with a higher purity using a smaller volume at less pressure of air which results in reduced energy costs and increase the life time of the compressor.
Continuous control of the operating parameters of Nitrogen allows to maintain the system at its maximum efficiency.
The CASTORE XL iQ SHI with its dual Nitrogen and Air outlets has been developed to meet specific requirements in term of gas, flow, purity and pressure of all Shimadzu LCMS applications. It can comfortably support the latest Shimadzu LC-MS instruments including the LCMS-8060NX.

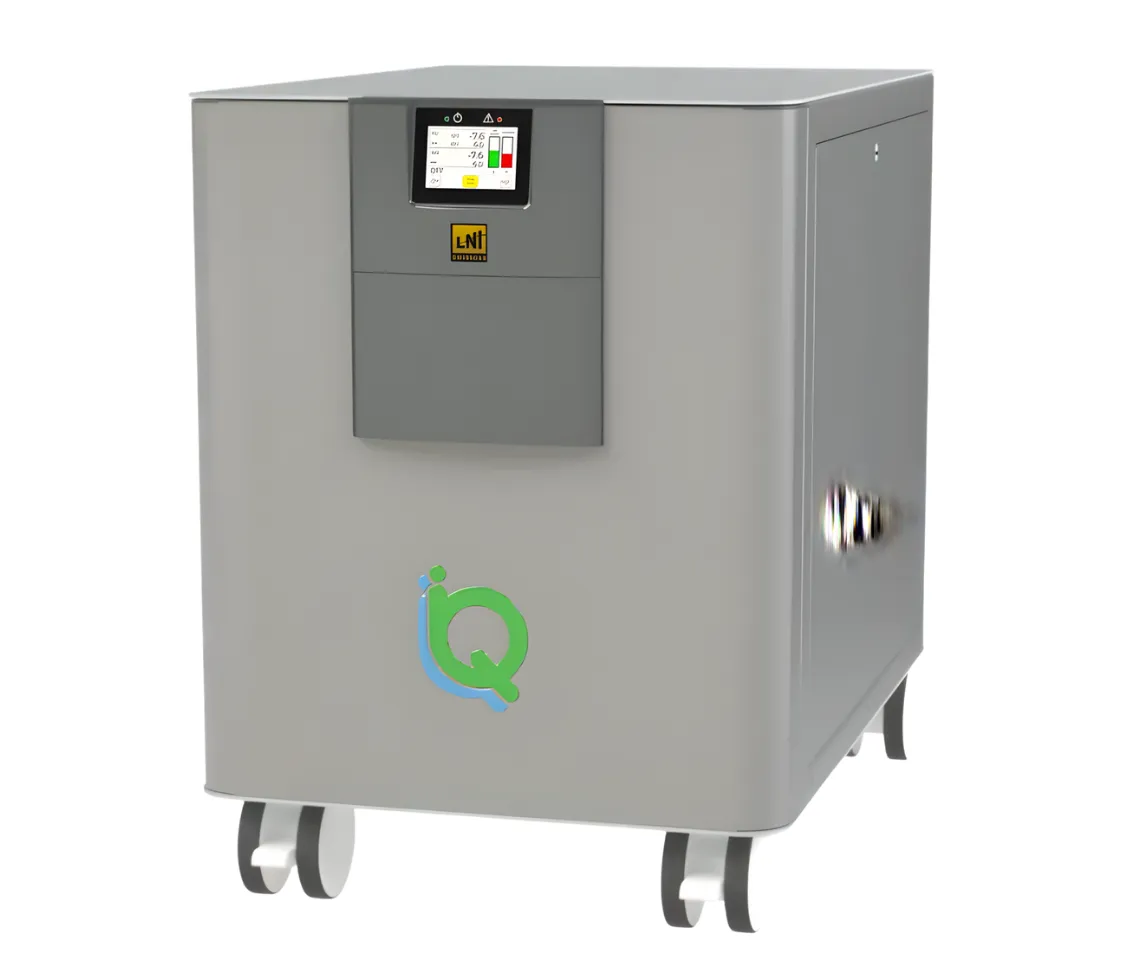

NGA CASTORE XS iQ SHI is a Nitrogen Generator with Membrane technology.
It is engineered to transform standard compressed air into a safe, regulated supply of Nitrogen and Air up to 40 l/min with a suitable LC-MS purity grade.
The CASTORE XS iQ SHI with its dual Nitrogen and Air outlets has been developed to meet specific requirements in term of gas, flow, purity and pressure for Shimadzu MS instruments such as LC-MS 8040, 8045, 8050, 8060.
It can be used for LC-MS and the evaporation of solvents in samples being analysed.
The new iQ generators are equipped with an innovative direct drive motor-scroll compressor system (oil less) with inverter technology.
The exclusive electronic flow control combined with the compressor control by the inverter allows to generate Nitrogen with a higher purity using a smaller volume at less pressure of air which results in reduced energy costs and increase the life time of the compressor. Continuous control of the operating parameters of Nitrogen allows to maintain the system at its maximum efficiency.

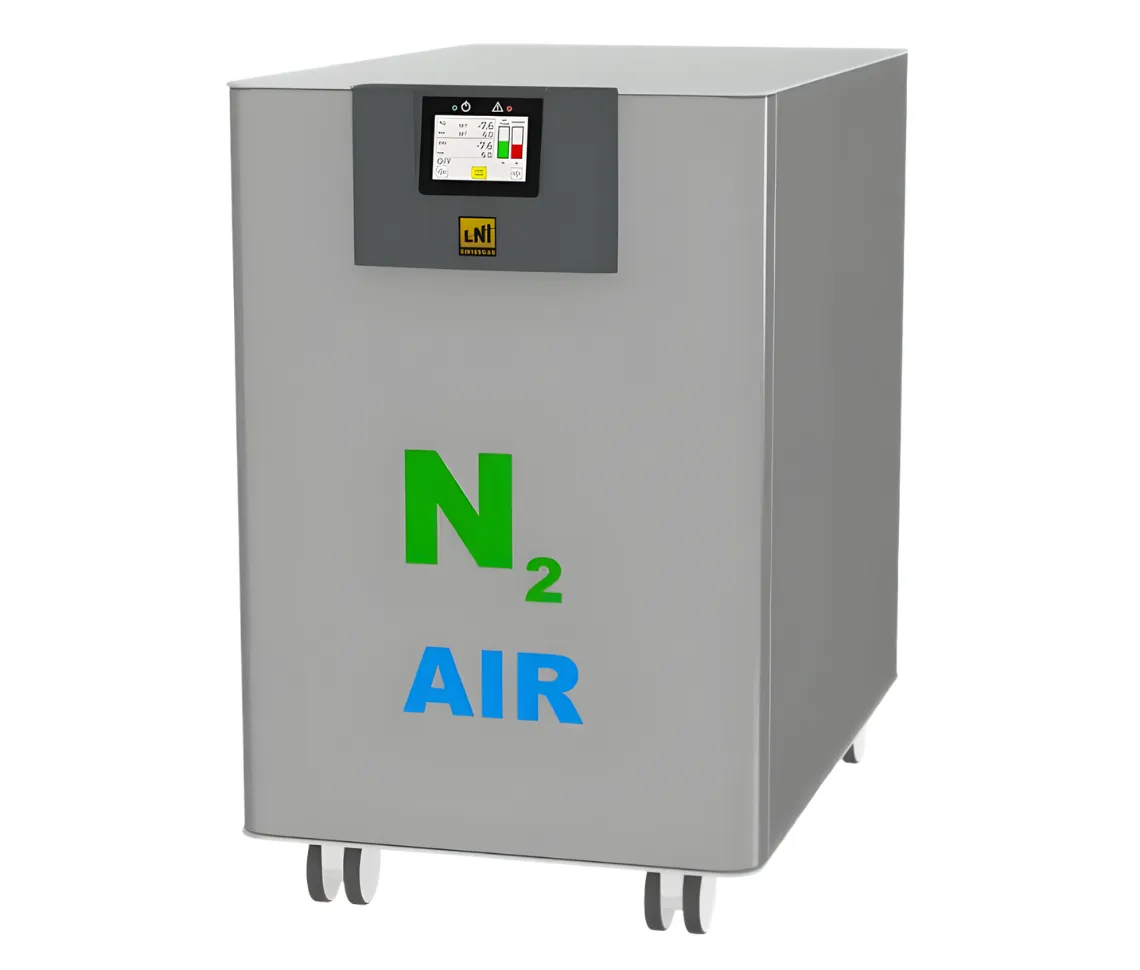

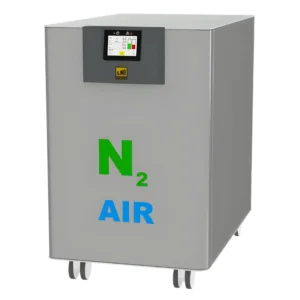

NGA SIRIO produces laboratory high grade nitrogen and clean dry air for most of the laboratory applications and equipments.
Designed with safety and convenience in mind, this system generates purified nitrogen, eliminating the need for inconvenient cumbersome high-pressure gas cylinders.
The NGA SIRIO removes oxygen from air to less than 5 ppm and HC pollutants to less than 0.1ppm (if the optional scrubber is installed). NGA SIRIO has smart low noise built-in pistons compressor, 100% oil-free.
The Ultra Pure Nitrogen is mainly used to feed ICP, ELSD, GC, FTIR and is ideal as nitrogen gas supply for all kind of Laboratory and Chromatography applications
