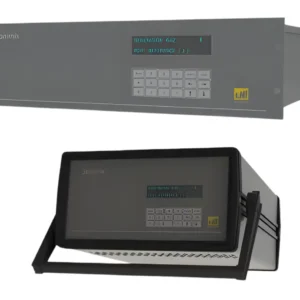

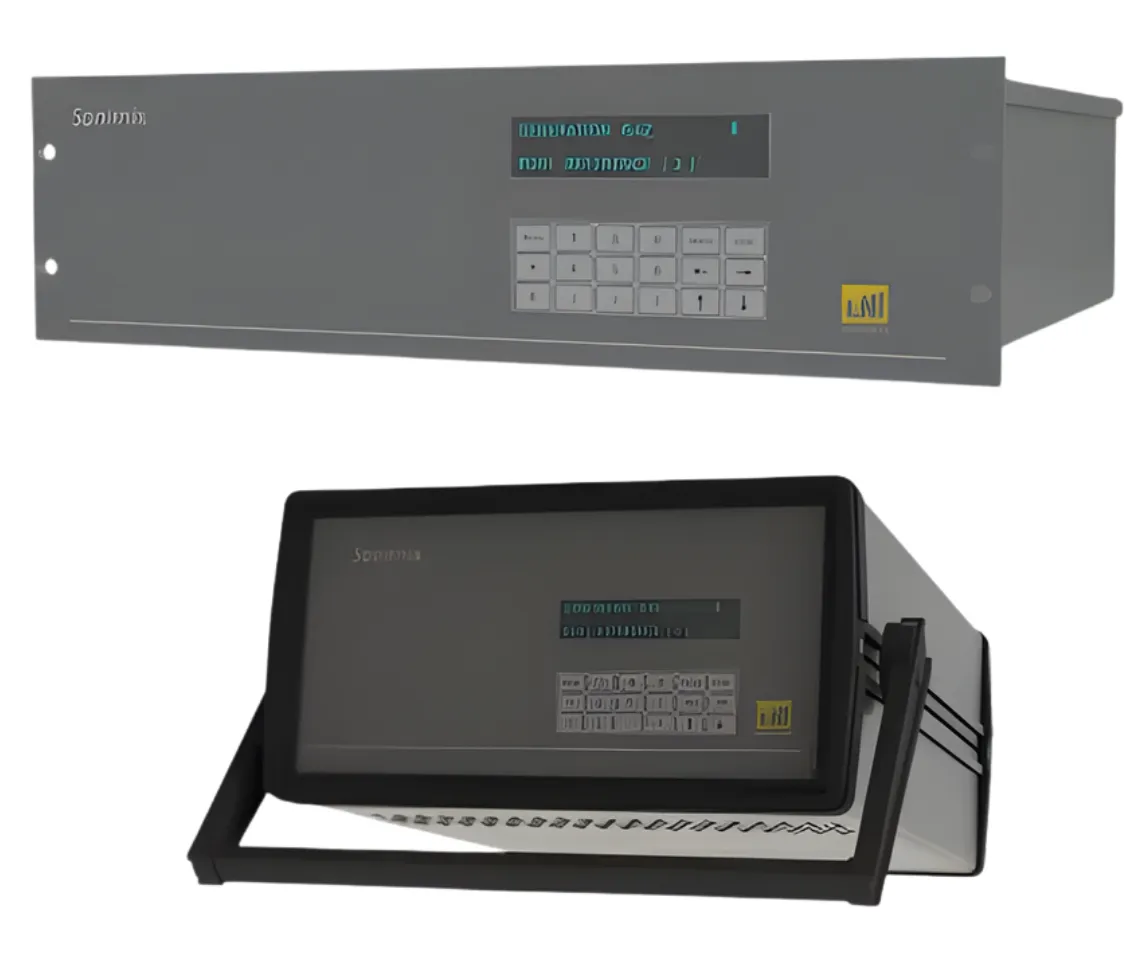

The multigas calibrator with GPT, ozone and self re-generable zero air generator, Sonimix 3012/3022, is an instrument designed to calibrate manually or by remote control up to 6 monitors installed in an air pollution monitoring station, such as SO2, HC, BTX, CO, NOx and O3.
The Sonimix 3012/3022 is equipped with
– an inlet for high concentration mixtures of diluted gases such as NO, NO2, SO2, CO, HC, BTX or mixtures of several compatible polluants in the same cylinder.
– a zero air generator composed of an internal compressor with self re-generable filters that removes moisture, O3, NOx, SO2, HC, BTX and optionally CO and CH4.
– a binary gas dilutor with two inlets (diluted gas and air), based on sonic nozzles (ISO 6145-6 standard)
The ozone generator is regulated by UV-light feedback and compensated from the atmospheric pressure and ambient temperature variations, with alarm on the drift of UV-light as well as the circuits for the GPT.

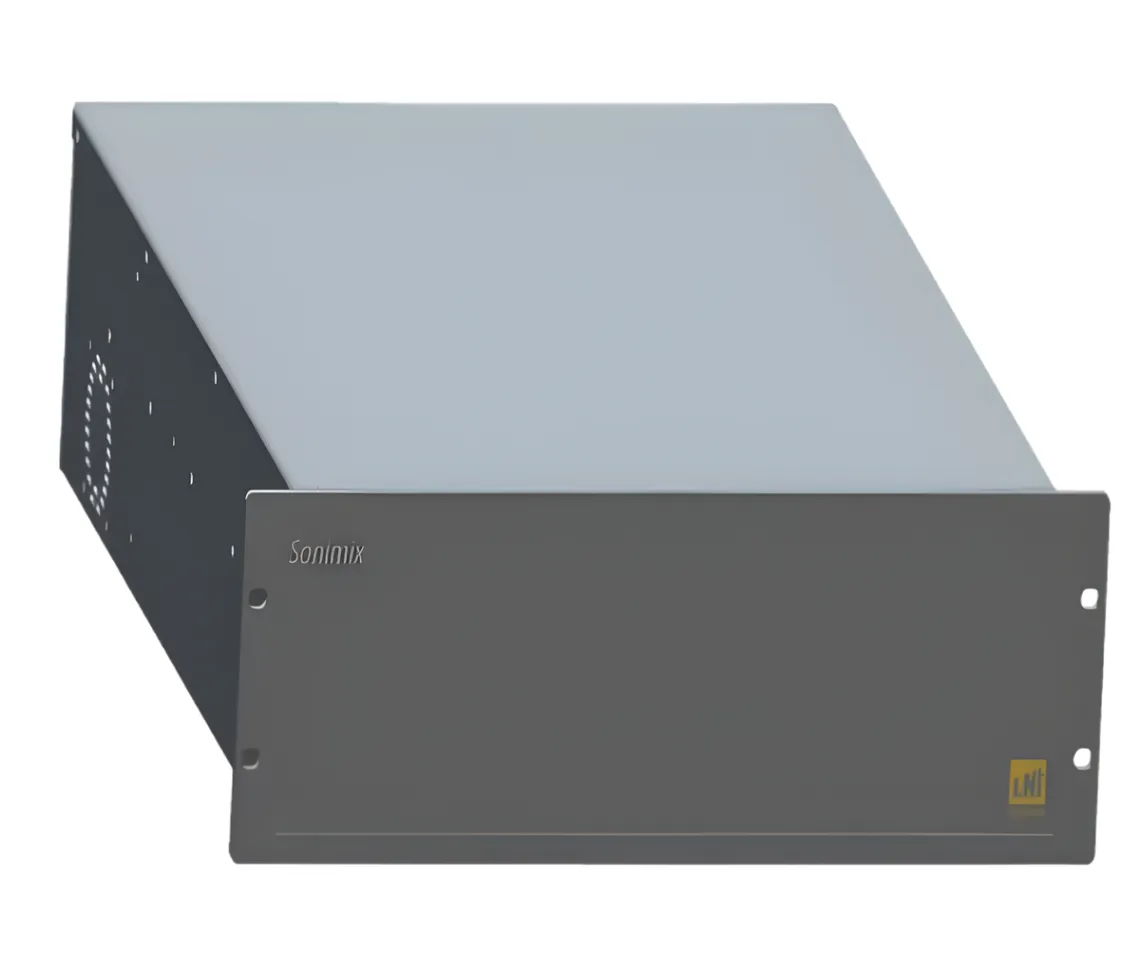

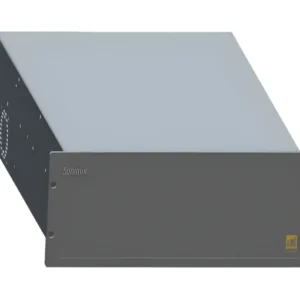

The SONIMIX 3030 is a 1-point dilution system designed for gas calibration and testing applications. Based on the principle of sonic nozzles with back pressure compensation, it ensures highly accurate and stable flow without the need for electronic regulation.
The unit is equipped with two manual 2/2 valves at the inlet and operates through a purely mechanical process, making it reliable and completely independent from ambient pressure or temperature variations.
This model has been designed for applications that request only 1 concentration. The advantage is being the use of high concentration cylinders (pure, in %, ppm or ppb) and dilute it up to 1/1000.
This method will increase the gas stability and save the consumption of the expensive gas.

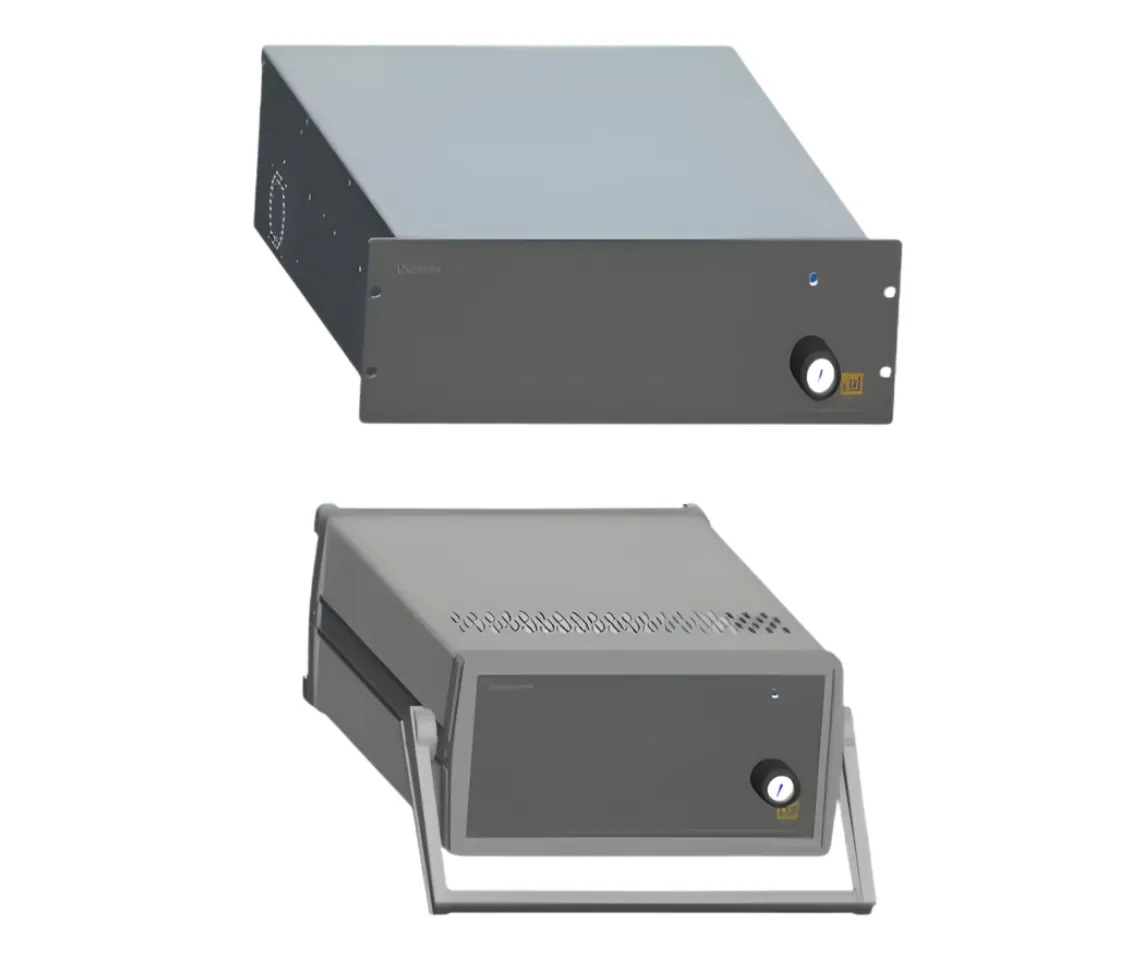

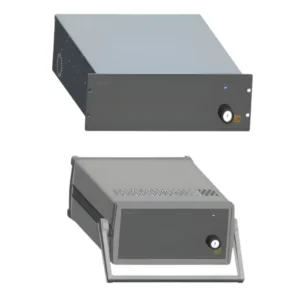

The self-regenerable zero air generator SONIMIX 3052/3057 is designed to supply high-purity air without the need for pressurized cylinders.
Optimized for use in Air Pollution Monitoring (APM) networks, this unit is the ideal companion to SONIMIX calibrators and gas dividers, including SONIMIX 3022, SONIMIX 6000 C2, and PermaCal systems.
SONIMIX 3052/3057 provides high-quality carrier or zero air for a wide range of gas analyzers. The unit filters, dries, and cleans ambient air from pollutants including HC, CH₄, CO, NO, NO₂, O₃, and SO₂. Air is compressed (internally), filtered, dried via a self-regenerating molecular sieve, and purified through a multistage scrubber system, including an optional hot catalysis module.

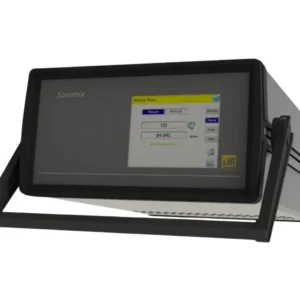

The Sonimix 4001 is a stand alone ozone primary transfer standard able to generate ozone together with dry or wet air (optional) allowing to calibrate the ozone monitors in several points. It generates an outflow of 3 Nl/min air containing 10 to 1000 ppb O3, with stability and reproducibility of the concentration better than 1% relative. The extended range model generates 10 ppb to 10 ppm at 3 L/min and 10 ppm to 35 ppm at 0.9 L/min.
The Sonimix 4001 is using pressure regulator and sonic nozzles and an ozone generator including thermostatisation and regulation by UV light photometer measurement with atmospheric pressure and temperature corrections (US EPA method of UV absorption by ozone, Beer-Lambert law). The ozone analyser is built with 1 reference UV light detectors that measure in alternance the UV intensity without any ozone and then the same UV light but through the generated ozone. With these 2 values, the processor calculates the amount of ozone generated.

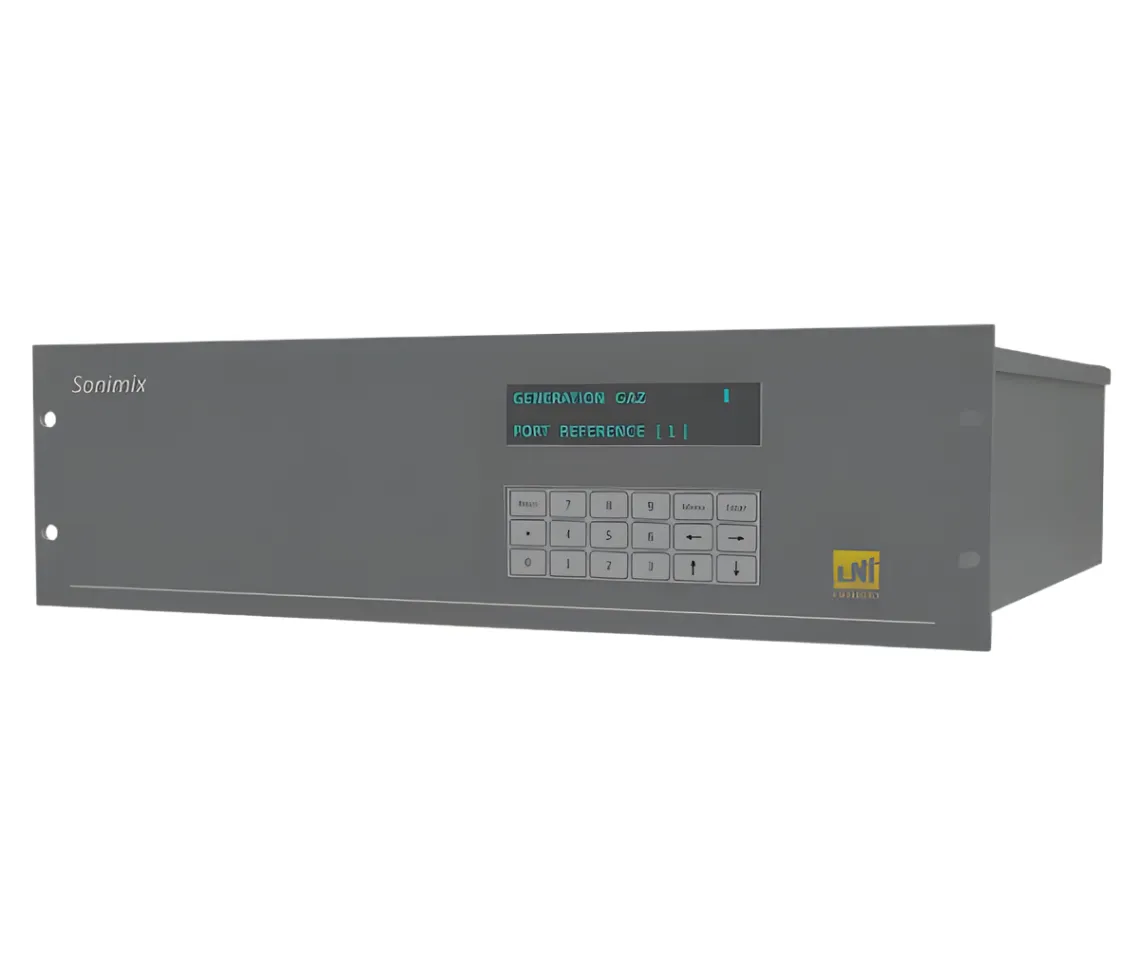

The multipoint multigas calibrator SONIMIX 6000C1 is an instrument designed to calibrate manually or by remote control up to 5 gas monitors installed in an Air pollution monitoring station, such as SO2, HC or BTX, CO, NOx and O3.
With the optional Ozone generator and GPT circuitry it is possible to verify the coherence of NO, NO2 and O3 analysers, and to determine the converter’s efficiency of the NOx monitors.
The interface allows to Configure the calibrator and to perform the manual operations of calibrations and GPT necessary after the maintenance process on the analysers.
Equipped with a binary gas mixer, based on high precision mass flow controllers and mechanical pressure regulators the SONIMIX 6000C1 can generate accurate dilution to low ppb level.
Options :
– Permeation oven of different sizes and material (up to 3 permeation oven per device), with a specific oven able to contain up to 6 BTEX permeation tubes.
– Ozone generator and GPT circuits.

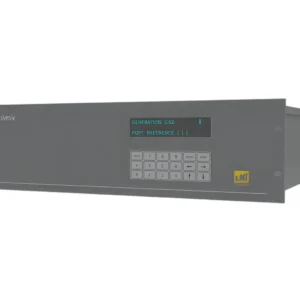

The multigas Sonimix 6000 C2 calibrator is designed to calibrate manually or by remote control up to 6 monitors installed in an air pollution monitoring station, for parameters such as SO2, HC, BTX, CO, NOx and O3.
The Sonimix 6000 C2 includes Mass Flow Controllers, GPT, ozone and self re-generable zero air generator and is equipped with
– an inlet for high concentration mixtures of diluted gases such as NO, NO2, SO2, CO, HC, BTX or mixtures of several compatible pollutants in the same cylinder.
– a zero air generator composed of an internal compressor with self re-generable filters, removes following components: moisture, O3, NOx, SO2, HC, BTX and optionally CO and CH4.
– a binary gas dilutor of two inlets (diluted gas and air), including 2 Mass Flow Controllers to generate the zero and other dilutions ratios going from 1/100 to 1/1000 (other values upon request).
The input pressures are monitored by two pressure switches. The ozone generator is regulated by UV-light feedback and is compensated from the atmospheric pressure and ambient temperature variations. It includes alarm on the UV power drift as well as the circuits for the Gas Phase Titration (GPT).

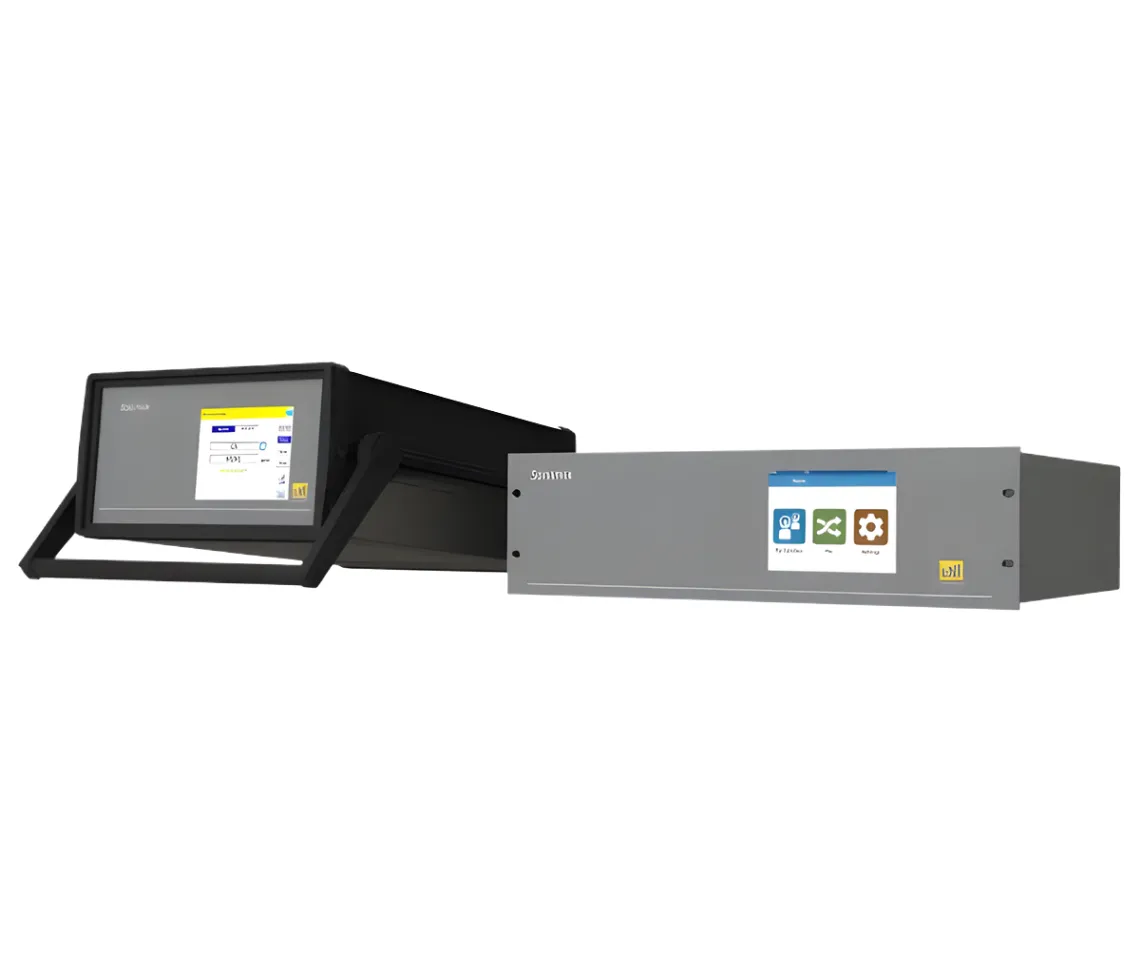

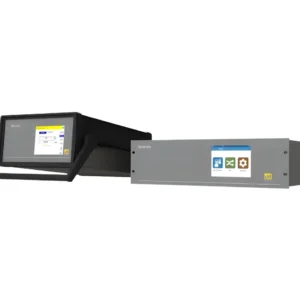

The Sonimix 7050 is a simplified gas mixer based on the principle of gas stream through mass flow controllers (MFC) and mainly used to calibrate and linearize Gas Monitors. Built according to the ISO 6145/7 normalization, the Sonimix 7050 is totally compatible with the US EPA methods and can be easily linked with National Standards (NIST, METAS, UKAS…).
The Sonimix 7050 Multi range gas mixer performs a large range of gas mixtures from high concentration gas cylinders

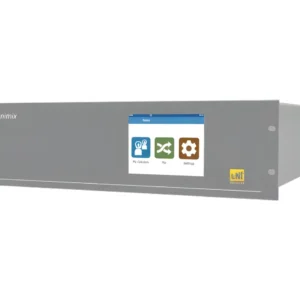

The Sonimix 7100 is a gas mixer mainly used to calibrate and linearize gas monitors and to generate specific gas mixtures .
The Sonimix 7100 is based on the principle of gas flow through MFC (Mass Flow Controllers) and is built according the ISO 6145/7 standards. This instrument provides a very high flexibility allowing to combine multigas mixtures (up to 5 gases + a balance gas) and multi-range functionality.
The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
All models make automatic calculation in function of the used gases types. The Sonimix 7100 is totally compatible with the US EPA methods and can be easily linked with National Standards (NIST, METAS, UKAS…)
Each mass flow controller is factory calibrated in 10 points by a traceable primary standard.

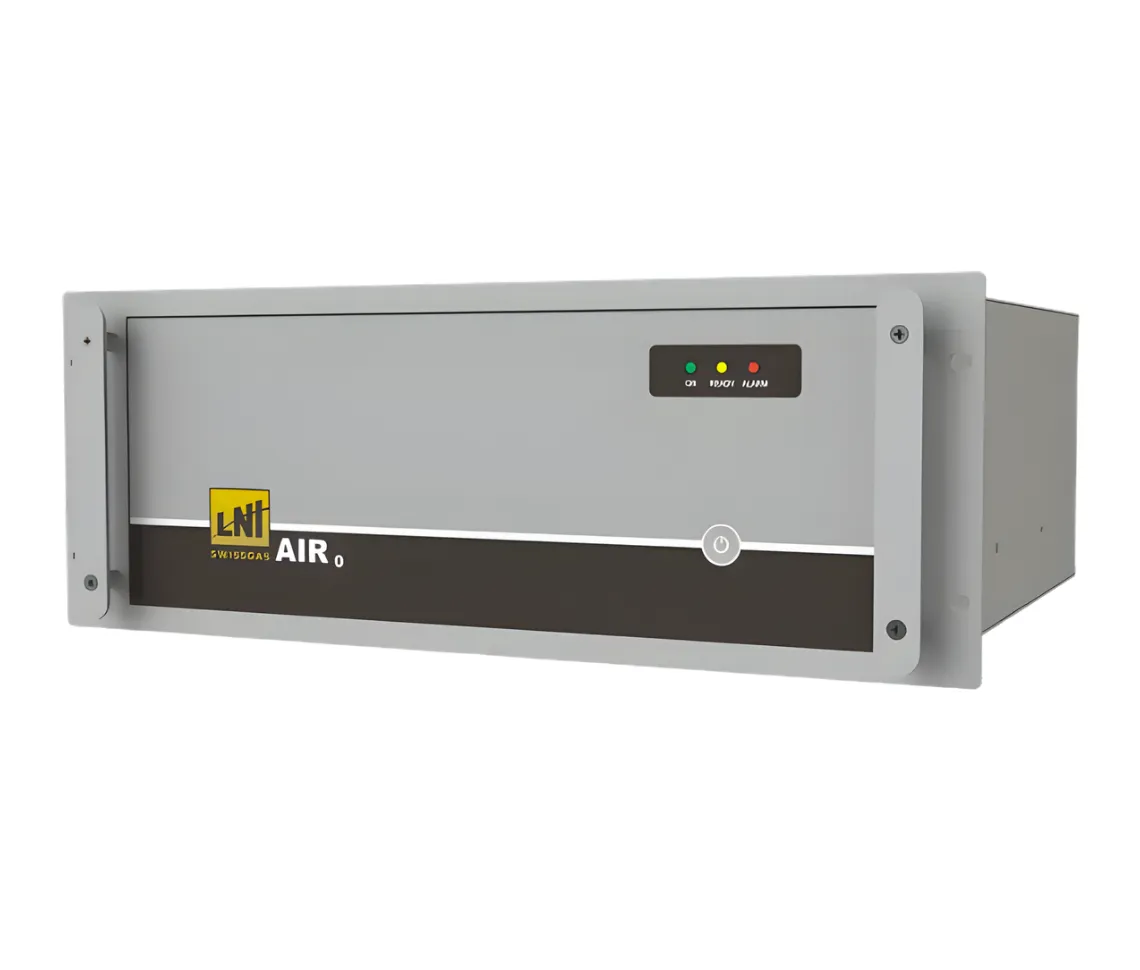

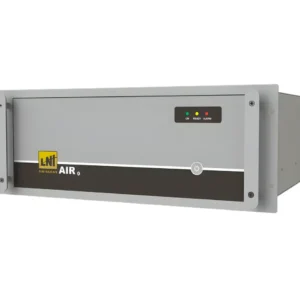

The Z4 zero air generator perform in 24/7 production process worldwide with utmost reliability. Even under the most challenging environments Z4s guarantee frictionless industrial use for different applications (example: high power UV-lasers (>300 nm)). The Generator produces a continuous flow of hydrocarbon-free air. The flow is controlled stable. All Generators reduce the total quantity of hydrocarbons to less than 0,01 ppm, establishing a stable flow for your application. Zero-air produced in this way replaces existing stocks of synthetic air stored in high pressure bottles.
Zero Air generators are designed specifically to supply clean, dry, hydrocarbon-free air to be used for several applications.
LNI Swissgas recognizes the importance of having a safe, reliable and cost effective supply of high-purity Zero Air.
In addition providing flexibility to add or remove modules as your application requirements evolve over time.

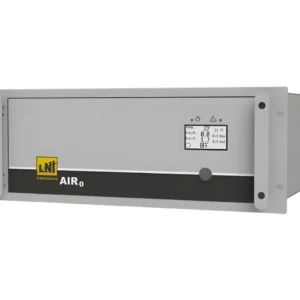

The Z5 zero air generator perform in 24/7 production process worldwide with utmost reliability. Even under the most challenging environments Z5s guarantee frictionless industrial use for different applications (example: high power UV-lasers (>300 nm)).The Generator produces a continuous flow of hydrocarbon-free air. The flow is controlled stable. All Generators reduce the total quantity of hydrocarbons to less than 0,01 ppm, establishing a stable flow for your application. Zero-air produced in this way replaces existing stocks of synthetic air stored in high pressure bottles.
Zero Air generators are designed specifically to supply clean, dry, hydrocarbon-free air to be used for several applications.
LNI Swissgas recognizes the importance of having a safe, reliable and cost effective supply of high-purity Zero Air.
In addition providing flexibility to add or remove modules as your application requirements evolve over time.

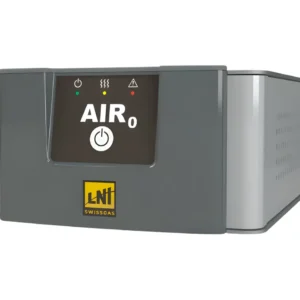

The AirGen series ZA FID AIR is able to remove the total hydrocarbons to less than 0.05 ppm from the external compressed Air. Very compact, the ZA FID AIR can purify up to 30 L/min of compressed Air and can bear a pressure up to 7 bar (101.5 psi). The filtration of the hydrocarbons is performed by using a catalytic oven filled with palladium. The reduction of hydrocarbons, including methane, and carbon monoxide decrease the background noise level and gives much better baseline stability, considerably increasing detector sensitivity and ensuring precise analytical results. High efficiency coalescing pre-filtration and post filtration of particulate size greater than 0.01 microns are used to prevent any kind of particles from entering the analytical device.
The ZA FID AIR has a very simple and efficient interface. It can also be managed by the HydroGen series HG PRO and HG BASIC and is ideal to supply Hydrocarbon free Air to FID detectors.

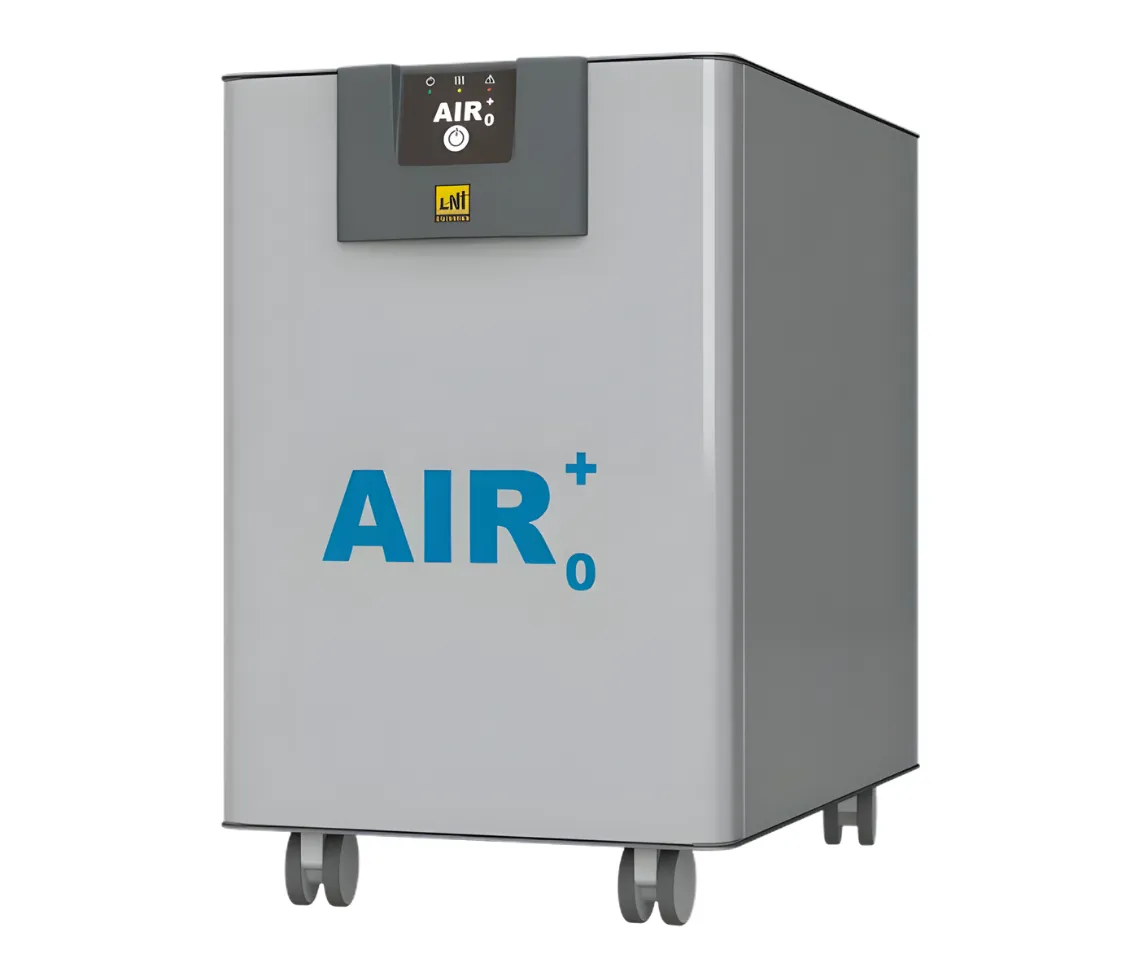

The AirGen series ZA FID AIR C PLUS is able to remove the total hydrocarbons to less than 0.05 ppm. Very compact, the ZA FID AIR C PLUS is available with a low noise built-in pistons compressor, 100% oil-free.
The filtration of the hydrocarbons is performed using a catalytic oven filled with palladium. The reduction of hydrocarbons, including methane, and carbon monoxide decrease the background noise level and gives much better baseline stability, considerably increasing detector sensitivity and ensuring precise analytical results. High efficiency coalescing pre-filtration and post filtration of particulate size greater than 0.01 microns are used to prevent any kind of particles from entering the analytical device. The ZA FID AIR C PLUS has a very simple and efficient interface. It can also be managed by the HydroGen series HG PRO and HG BASIC and is ideal to supply Hydrocarbon free Air to FID detectors.

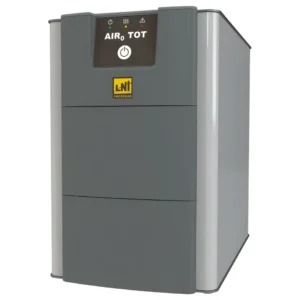

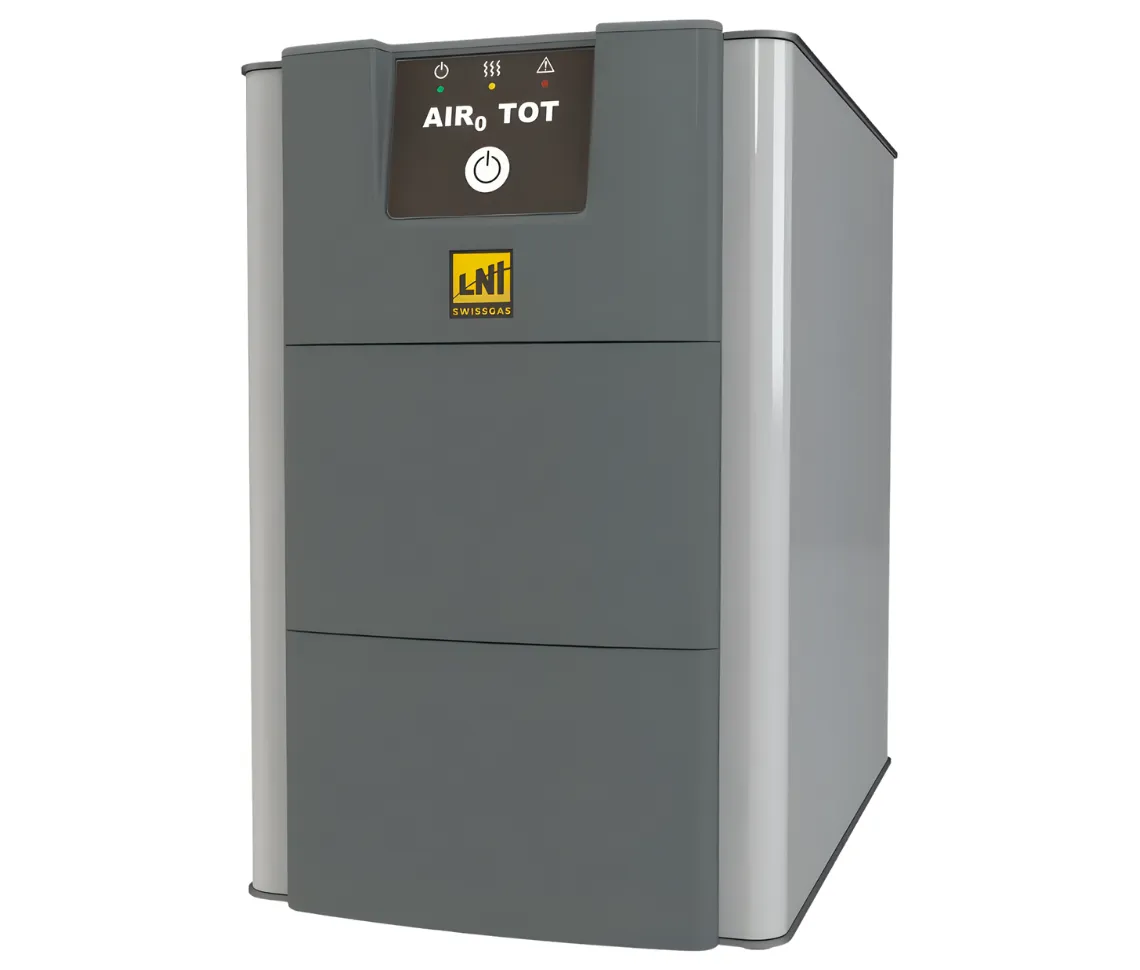

The AirGen series ZA-TOTAL is able to remove the total hydrocarbons to less than 0.05 ppm from the external compressed Air. It is also able to remove other pollutant like Humidity, CO2, CO, NOx, SO2 and Hydrocarbons. Very small in size, the ZA-TOTAL can filter up to 30 L/min of compressed Air and can withstand a pressure up to 8 bar (115 PSI). The reduction of hydrocarbons, including methane, and carbon monoxide decrease the background noise level and gives much better baseline stability, considerably increasing detector sensitivity and ensuring precise analytical results. The hydrocarbons and CO are removed with a catalytic oven filled with palladium, the Humidity and CO2 is removed with a dual molecular sieve PSA system, NO is removed with Purafil and other components are removed with an active charcoal filter.

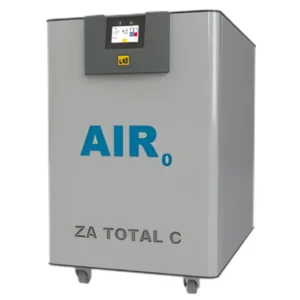

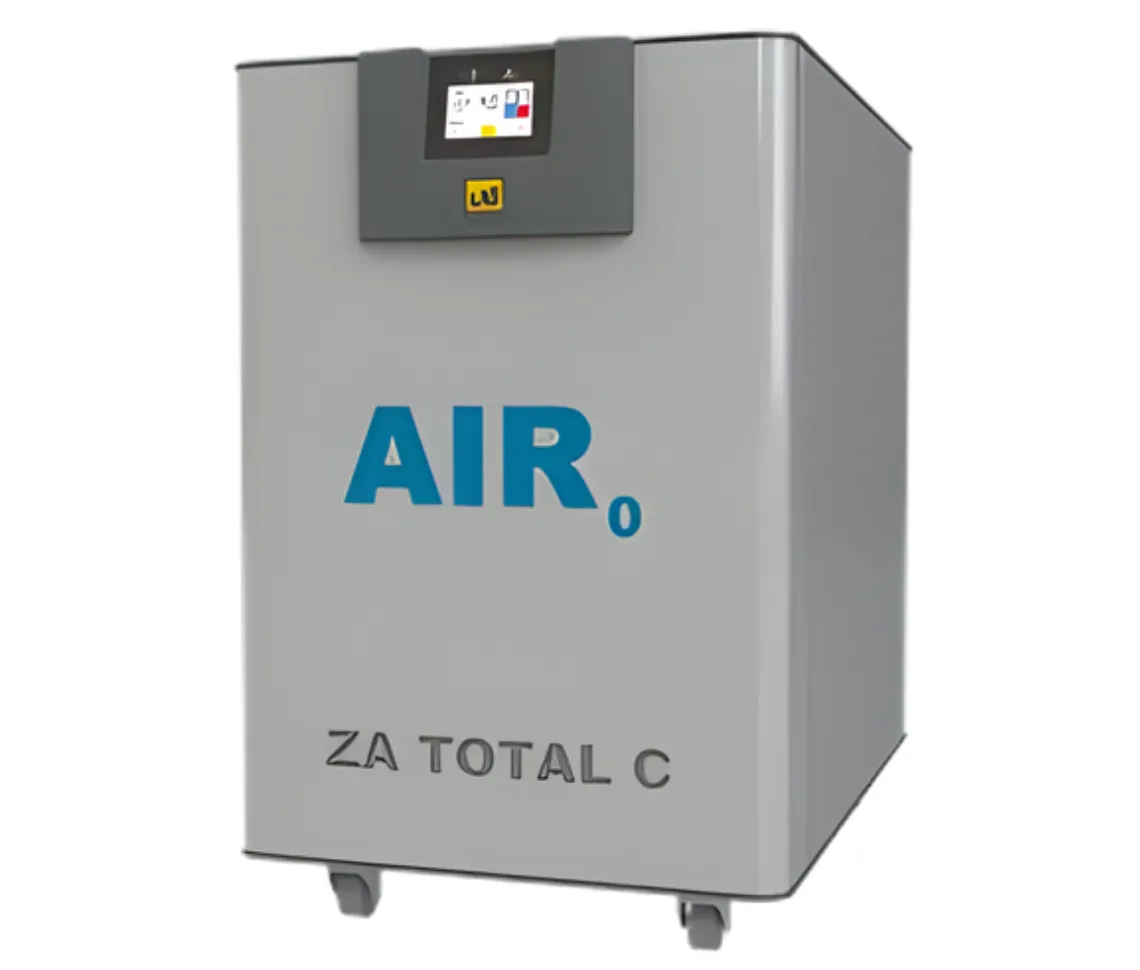

The AirGen series ZA-TOTAL-C is able to remove the total hydrocarbons to less than 0.05 ppm and other pollutant like Humidity, CO2, CO, NOx, SO2. ZA-TOTAL-C is available with a smart low noise built-in pistons compressor, 100% oil-free.
The reduction of hydrocarbons, including methane, and carbon monoxide decrease the background noise level and gives much better baseline stability, considerably increasing detector sensitivity and ensuring precise analytical results. The hydrocarbons and CO are removed with a catalytic oven filled with palladium, the Humidity and CO2 is removed with a dual molecular sieve PSA system, NO is removed with Purafil and other components are removed with with an active charcoal filter.

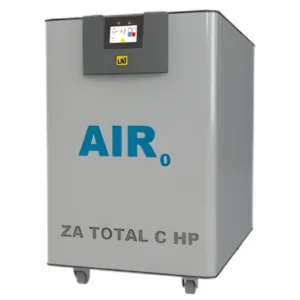

The AirGen series ZA TOTAL C HP is able to remove the total hydrocarbons to less than 0.05 ppm and other pollutant like Humidity, CO2, CO, NOx, SO2. ZA TOTAL C HP is available with a smart low noise built-in pistons compressor, 100% oil-free.
The reduction of hydrocarbons, including methane, and carbon monoxide decrease the background noise level and gives much better baseline stability, considerably increasing detector sensitivity and ensuring precise analytical results. The hydrocarbons and CO are removed with a catalytic oven filled with palladium, the Humidity and CO2 is removed with a dual molecular sieve PSA system, NO is removed with Purafil and other components are removed with an active charcoal filter.

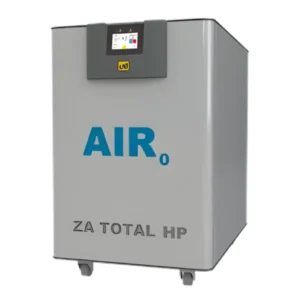

The AirGen series ZA TOTAL HP is able to remove the total hydrocarbons to less than 0.05 ppm and other pollutant like Humidity, CO2, CO, NOx, SO2.
The reduction of hydrocarbons, including methane, and carbon monoxide decrease the background noise level and gives much better baseline stability, considerably increasing detector sensitivity and ensuring precise analytical results. The hydrocarbons and CO are removed with a catalytic oven filled with palladium, the Humidity and CO2 is removed with a dual molecular sieve PSA system, NO is removed with Purafil and other components are removed with an active charcoal filter.
